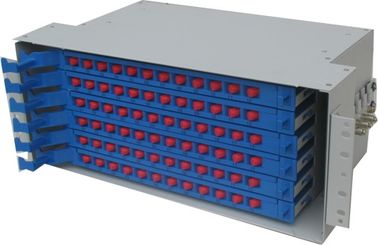

19 Inch 72 Cores CATV Rack-mount ODF Fiber Unit Box
| High Light: | optical distribution cabinet,fiber cross connect |
||
ODF 72 cores
1.Protect the connection & Pigtail
2.Available for ribbon & common cable
3.Install adapter respectively
ODF 72 cores ODF (Optical Distribution Frame)
Rack-mount fiber optic distribution frame is modulated design with draw able trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. Its front mark on the plates is easy for identification and operation.
Features:
Dimension (cm): 49(W)x30.5(L)

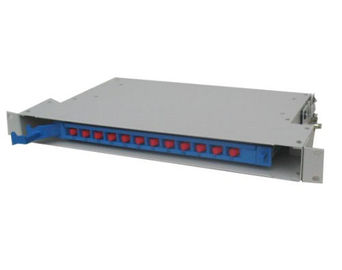

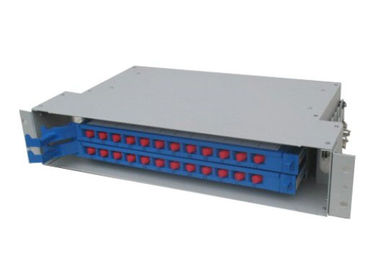

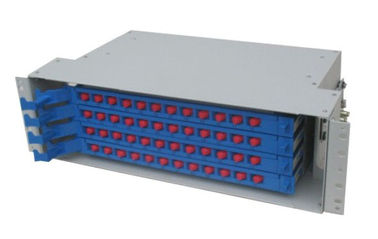

Height: 1U, 2U, 3U, 4U^.. according to cores.
Weight (kg): according to cores.
Capacity: 12 cores, 24 cores, 36 cores, 48 cores.
Draw able trays inside changeable
Various panel plates to fit different adapter interface
Standard size, can be used in 19'', 23'' standard distribution frame
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
-
