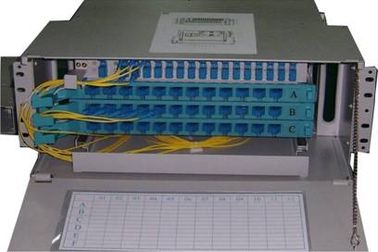

Stainless steel IP65 4U Height 19'' Standard Splitting Fiber ODF Unit 175 * 482 * 320mm
| Material: | Stainless Steel Body | Brand name: | CY COM |
| Max Capacity:: | 96 Cores | Preotection Class:: | IP65 |
| High Light: | optical distribution cabinet,fiber cross connect |
||
4U Height 19'' Standard Splitting Fiber ODF Unit 175 * 482 * 320mm
Description:
The product is used in small and medium-capacity optical splitting point in FTTH network, achieving wiring and distribution function at the same time.
It's applicable in network cabinets and multi-purpose cabinets.
Features:
It can be loaded with 1/2*32 optical splitters and 36 cores distribution branches.
Achieve cross-connection and storage management in unit
Complete functions, easy to operate
Enough operation space, easy for use and maintenance
19'' standard installation, 4U height
Sliding splice tray
Dimension:175*482*320mm
Capacity:36 cores
| Type | Dimension(mm) | Max capacity cores | Remark |
| GPZ/RM-SC12 | 480*250*1U | 12 |
The body is made of cold rolled steel sheet, with electrostatic spraying. We can install adaptors for you, available for FC, ST, SC, LC .
|
| GPZ/RM-SC24 | 480*250*1U | 24 | |
| GPZ/RM-SC48 | 480*250*2U | 48 | |
| GPZ/ RM-FC12 | 480*250*1U | 12 | |
| GPZ/ RM-FC24 | 480*250*1U | 24 | |
| GPZ/ RM-FC48 | 480*250*2U | 48 | |
| GPZ/ RM-ST12 | 480*250*1U | 24 | |
| GPZ/ RM-ST24 | 480*250*1U |
24 |
