Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density

Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density
Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density
video play

Large Image :  Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density

Product Details:
Brand Name: Senko / US CONEC / Furukawa Connector
Payment & Shipping Terms:
Minimum Order Quantity: 1
Supply Ability: 50K
Contact Now
Detailed Product Description
Connector Type: LC,SC,FC, ST, MTRJ,MTP,MPO Etc Mode Type: OS1/OS2/OM1/OM2/OM3/OM4
Cable Jacket: PVC/LSZH/Plenum Surface Polishing: PC,APC,UPC
Testing: Interferometer /Insertion And Return Loss Test Certificate: ISO, CE, ROHS
High Light:

patch cord optical fiber

,

fiber optic cassette

Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density

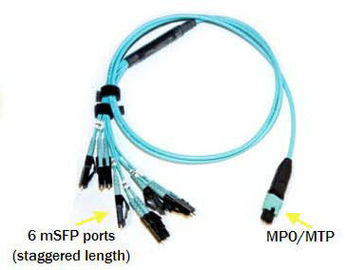

mSFP cable-mSFP to MPO/MTP

            mSFP to MPO/MTP Duplex 10Gb Multimode OM3 Fiber Optic Patch Cables are specifically designed for CY COM's new FC8-64 high density blade. CY COM's mSFP MPO/MTP (Mini-MPO/MTP) interface offers unparalleled optical network performance at data-rates up to 10-Gigabits per second in a new high density 5.25mm pitch package. Aqua OM3 Laser Optimized Multimode Fiber is well suited for 850nm VCSEL 10GBASE-SR link distances up to 300m (984 ft). Each 50/125um multimode fiber optic patch cable utilizes a plenum-rated OFNP jacket for compatibility with most datacenter and critical area applications.



Product Features:
  • Cable: 50/125um OM3 10Gb Laser Optimized Multimode Fiber (Zipcord)
  • Jacket: OFNP (Plenum Rated) for enhanced safety in air-handling conduit
  • Ideal for 10-Gigabit Ethernet backbone connections up to 300m in length
  • Cables are backward compatible with 50/125u OM2 optical networks
  • Precision-built, polished, and optically tested prior to shipment
  • Full support for LED and VCSEL light sources @ 850nm & 1300nm
  • Premium-grade molded strain relief boot provides added durability
  • Available in lengths ranging from 1m to 10m in length
  • Insertion Loss: = 0.30 dB
  • Return Loss: = 55 dB
  • Durability: 500 mating cycles per EIA/TIA-568-B.3
  • Bandwidth: 2000/500 MHz-km (OM3) @ 850/1300 nm
  • Our CY COM compatible mSFP cables cross reference with the following:
  • Amphenol P/N: 943-99865-10001 (1m), 943-99865-10002 (2m), 943-99865-10003 (3m), 943-99865-10005 (5m) & 943-99865-10010 (10m)
  • Molex P/N: 106273-0525 (1m), 106273-0526 (2m), 106273-0527 (3m), 106273-0528 (5m) & 106273-0529 (10m)
  • Corning P/N: S50502S5120001 (1m), S50502S5120002 (2m), S50502S5120003 (3m), S50502S5120005 (5m) & S50502S5120010 (10m)



Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density 0

Multimode Fiber Optical Cable MSFP to MPO / MTP Duplex 10Gb With High Density 1



Tag:

fiber optic cassette,

patch cord optical fiber,

fiber optic patch cord
