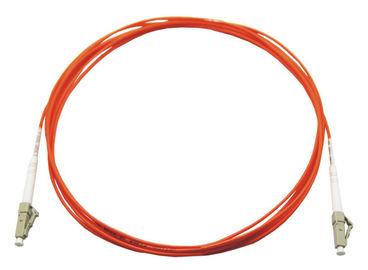

LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN

LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN
LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN

Large Image :  LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC-LC Multimode , Simplex
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Product Name: Fiber Optic Patch Cord Ferrule End-face: UPC,APC
Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 0.25mm Cable Length: 1M, 3M, 5M, Customized
Cable Jacket: PVC, LSZH Core: Simplex, Duplex
High Light:

sc fiber patch cord

,

st patch cord



LC-LC Simplex Multimode Fiber Optic Patch Cord In FTTX + LAN







Quick Details

  1.  Ferrule end-face:UPC,APC
  2.  Cable diameter:3.0mm, 2.0mm, 0.9mm, 0.25mm
  3.  Cable length:1M, 3M, 5M, customized
  4.  Cable Jacket:PVC, LSZH







Description:

Telcordia style boots LC stands for Lucent connector,which is a small form-factor fiber optic connector,half the size of the ST,PVC fiber optic cable.







Application:

Usage:Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system,

Telecommunication







Specification:

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9







Availabilities:

  • -Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
  • -Simplex and Duplex assemblies available
  • -Singlemode and multimode available
  • -PC, UPC and APC polishing available
  • -Hybrid patch cords are available upon request
  • -Fan-out available (Ribbon type / bundle type)
  • -Pigtail available
  • -Loopback available
  • -Customized lengths upon request
  • -100% tested before shipping







Competitive Advantage:



Factory Guarantee:

1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.

2.To develop advanced technology ,we have built a stable relationship with scientific research center for

fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products

enjoy great reputation for their advanced and precise quality worldwide.



Quality Advantage:

1.We set up a strict quality guarantee system according to the requirments of international management

standard ISO9001:2008.

2.We have not received complaints from customers on product quality right now.



service advantage:

1.To cater for different requirement from our customers, we offer various OEM service.

2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing

environment and requirements.
