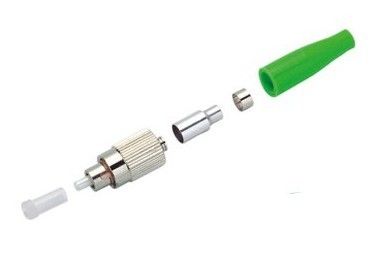

FC 3.0mm Fiber Optic Connector Kits For Single And Multi Mode
| High Light: | fiber optics cable connectors,optical fibre pigtail |
||
FC 3.0mm Fiber Optics Connector Kits For Single And Multi Mode
Quick Details:
FC 3.0mm fiber optic connector kits
1.Single mode or Multimode
2.3.0mm,2.0mm,0.9mm
Description:
FC 3.0mm fiber optic connector kits ,passed ISO9001 and ROHS Standard,It was used for producing fiber optic patch cables.
Features:
- Low insertion loss and return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
- High precision alignment
Availability:
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits without ferrule are available.
-
PC and APC are available
Specification:
|
Item |
Single mode |
Multimode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
<0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
>25dB |
|
Insert-pull test |
1000(times) <0.2dB |
|
|
Operating temperature |
-40°C~ +80°C |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: <1um |
127um concentricity deviations: <3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Competitive Advantage:
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber
optical component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great
reputation for their advanced and precise quality worldwide.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management
standard ISO9001:2008.
2.We have not received complaints from customers on product quality right now.
Service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
-
