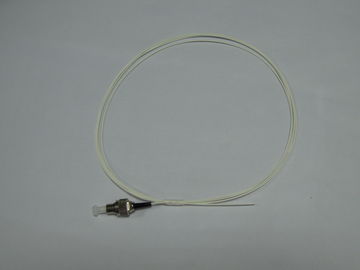

White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination

White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination
White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination
video play

Large Image :  White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Fiber Type:: Om2 50 125 Cable Color:: White
Connector Type: Lc 0.9mm Sheath Material:: LSZH
High Light:

fiber optics cable connectors

,

fiber optic fc connector

Good Exchangeability FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination



Features:
Low insertion loss and high return loss
Good exchangeability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard



Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network



Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): < 0.2 (UPC) , < 0.3 (APC)
Return Loss (dB): > 50 (SM/UPC) , > 60 (SM/APC), 35(MM/UPC)
Exchangeability: < 0.2 dB
Tensile Strength: < 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: <50 um, <100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8degree �± 0.5 degree (APC)



fiber type 50/125 OM2
Test wavelength 1310/1550nm
Insertion Loss (Max) -0.3dB
Return Loss (RL) UPC>50dB
Durability <0.1dB typical change,1000 repeatability




Ordering Information:
FC/PC-SM- SX-3.0mm-1M

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: DX means Duplex / SX means Simplex
5. Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customize



White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination 0White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination 1White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination 2White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination 3White cable FC / PC 0.9mm Fiber Optic Pigtail for Active Device Termination 4
