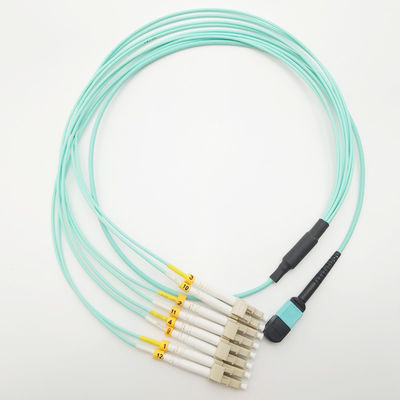

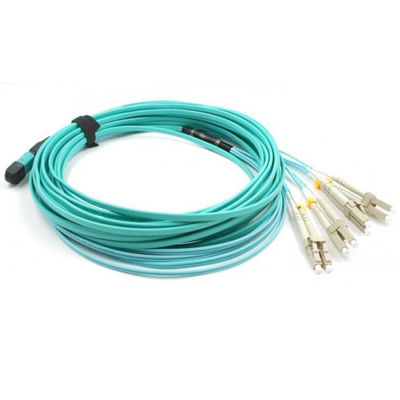

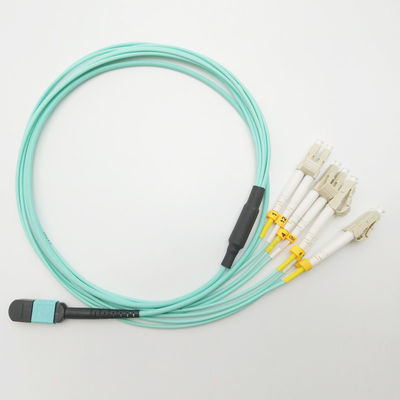

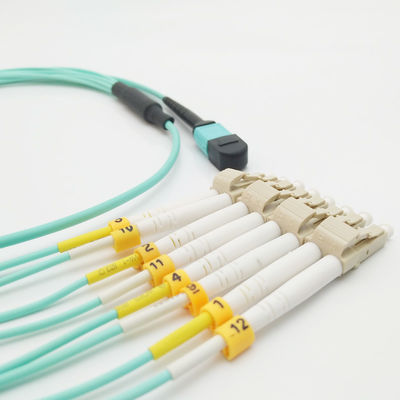

3M Duplex OM3 MPO To 8xLC Fiber Optical Patch Cord 50/125
| Product Name: | OM3 MPO To 8xLC Fiber Optical Patch Cord | Model No: | MPO-4/DX LC SM |
| Core diameter: | 50/125 62.5/125 | Color: | Aqua |
| Cable diameter: | 0.9mm/2.0mm/3.0mm | Application: | FTTH FTTB FTTX Network |
| High Light: | Fiber Optical Patch Cord 50/125,MPO Fiber Optical Patch Cord,Duplex MPO Patch Cord |
||
3-Meter (10 Feet) OM3 MPO to 8xLC Fiber Optical Patch Cord, 8-Core Multimode Duplex 40G 50/125 LSZH PC Polish Fiber Cable
Specifications:
- MPO (female) to 8xLC
- MPO Female, without PIN
- MMF(50/125um), OM3
- Cable Length: 3-Meter(10ft)
- Insertion loss : MPO≤0.6 dB; LC≤0.3dB
- Return loss : MPO≥20dB; LC≥35dB
- Insert- pull test : 500times <0.5 dB
- Operation temperature : -40°C ~ +80°C
Performance index:
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||||
| Insertion loss (typical) |
dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | ||
| Operating wavelength |
nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||||
| Operating temperature |
°C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||||
| Storage temperature |
°C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||||
-
8Reliable manufacturer,reassuring,experienced!
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
DExperienced supplier,good service,it is valuable to have a long cooperation.
