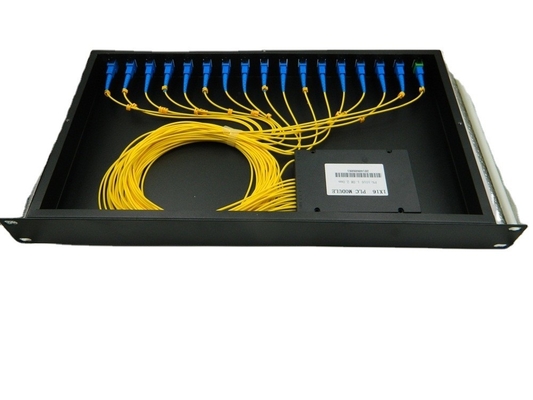

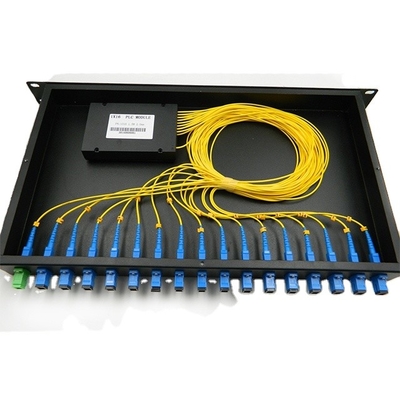

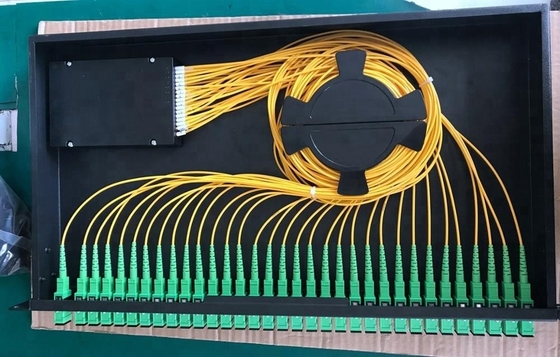

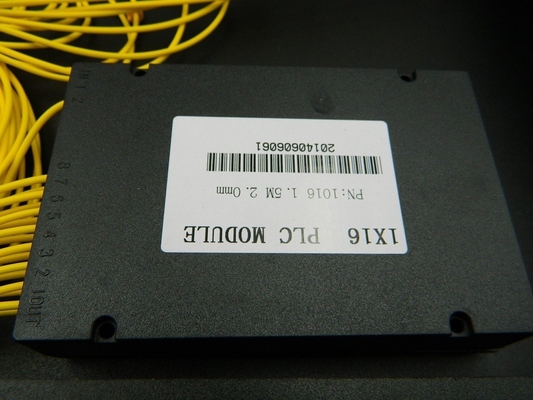

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter
| Model Type:: | 19 Inch Plc Splitter Box | Package Type:: | Rack Mount |
| Material:: | Aluminum | Fiber Connector:: | SC/LC/FC/ST |
| Operating Temperate:: | -40~85°C | Function:: | Distribution Fiber System (FTTH) |
| High Light: | 1x32 PLC Splitter,Rack Mounted Type PLC Splitter,1x32 Fiber PLC Splitter |
||
Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter
Aluminum 19 inch Rack Mounted Type PLC Splitter 1x16 1x32 Fiber Optical Splitter Optic Box
Quick Detail:
- Fiber type: G652D, G657A1, G657A2
- Cable jacket: PVC, LSZH, OFNR, OFNP
- Cable length: 1M, 1.5m…customized
- Package: ABS, Steel tube
- Connector: SC, LC, ST, FC, MU, E2000
- Ferrule end-face: PC, UPC, APC
Description:
We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Features:
- Excellent directivity
- Good channel-to-channel uniformity
- High cost-effectiveness
- High environmental and mechanical stability
Applications:
- Fiber optical communication system
- Fiber optical sensors
- CATV System
- LAN System
- WAN System
Specification:
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector.
-
