96 Core 1U Drawer Fiber Patch Panel MPO Cassette

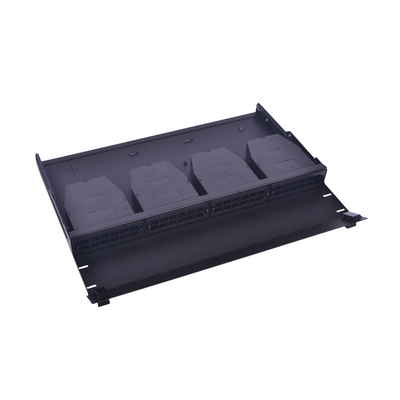

Large Image : 96 Core 1U Drawer Fiber Patch Panel MPO Cassette

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 ;ROSH

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Packaging Details:	Carton and Wooden
Delivery Time:	4-8 days
Payment Terms:	Western Union, T/T
Supply Ability:	2K/Month

Contact Now

Detailed Product Description

Fiber Qty:	96core	Patch Penal:	24*4 Port
Height:	1U	Material:	Cold Rolled Steel / ABS Plastic
Color:	Black	Application:	Network, Telecommunications
Adapter Type:	SC Simplex / LC Duplex / LC Quad	Aadpter Color:	Beige / Blue / Green /Auqa / Purple
Highlight:	1U Drawer Fiber Patch Panel , 96 Core MPO Cassette , 1U Drawer MPO Cassette

96 Core 1U Drawer Fiber Patch Panel MPO Cassette

96core 1U 19'' rack mount drawer type Fiber patch panel with MTP/MPO Cassette module

1. Description:

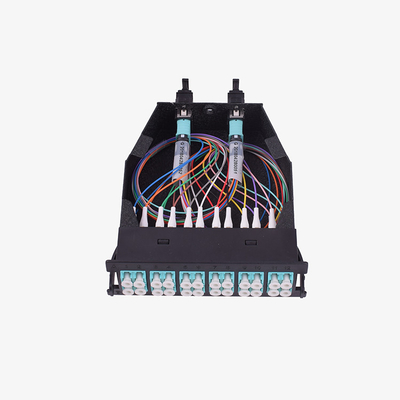

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 2U 19" multislot chassis.

MPO Cassettes contain factory controlled and tested MPO-LC an-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

2. Feature

1. Suitable for MPO/MTP application

2. High-density and small design; asy and fast installation

3. 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts

4. Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.

5. Metallic shell with high strength protect the inner fibers effectively

6. Supports easy reconfiguration for moves, adds, and changes

3. Technical Parameter

Name: MPO Patch Panel with 4pcs MPO cassettes

Material: cold rolled steel

Structure: 1U, 19' Rack Mounted

Availabe adapter port: LC, SC

Material thickness:1.2mm

Capacity: 4pcs MPO Cassettes

3. Application

high density cable wiring system

high efficiency cable wiring system

connection of trunk lines

high integrated equipment and devices

96 Core 1U Drawer Fiber Patch Panel MPO Cassette 0

5. Parameter:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

6.Product Show:

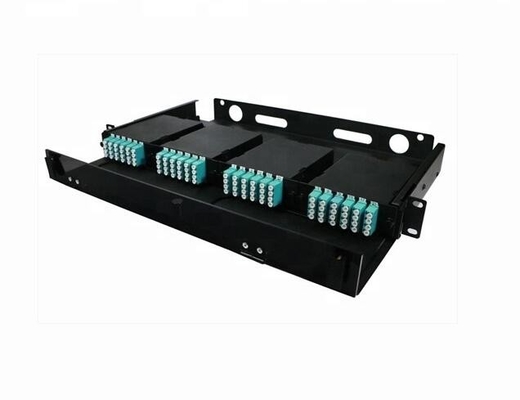

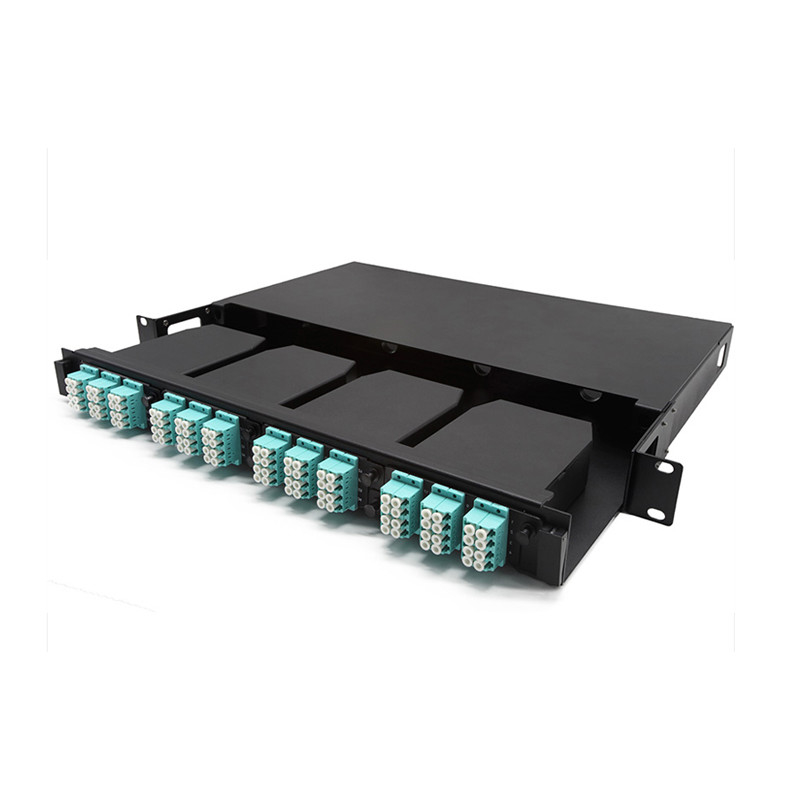

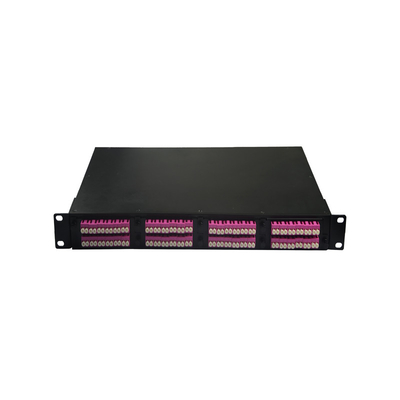

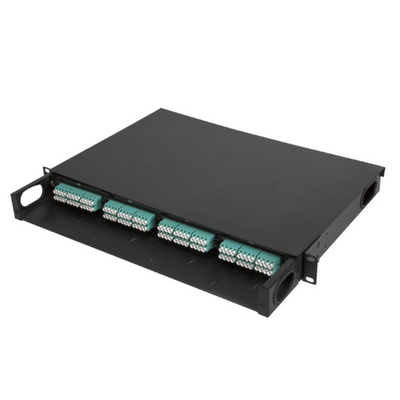

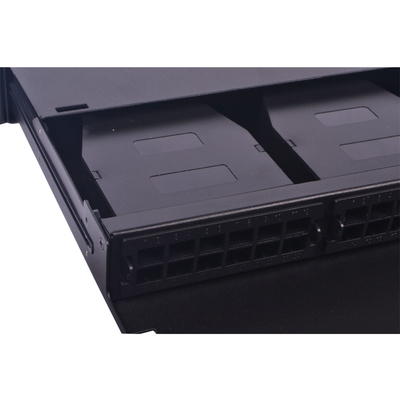

96 Core 1U Drawer Fiber Patch Panel MPO Cassette 2

96 Core 1U Drawer Fiber Patch Panel MPO Cassette 4
