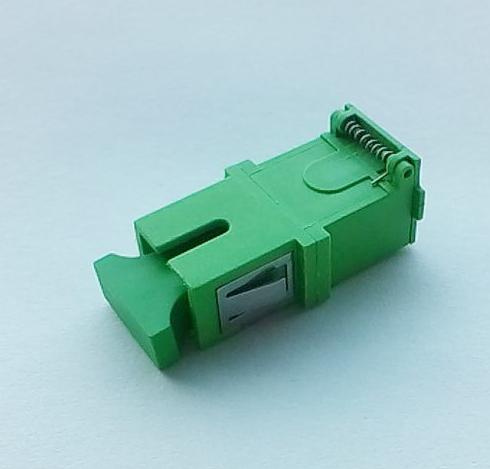

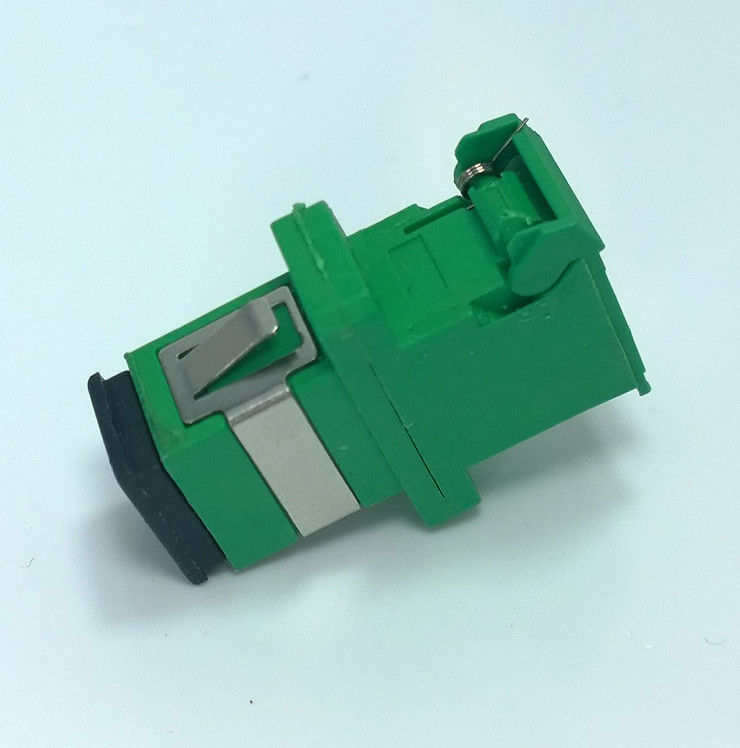

SC / APC simplex shuttered fiber optic adapters Green High Precious Structure

Large Image : SC / APC simplex shuttered fiber optic adapters Green High Precious Structure

Product Details:

Place of Origin:	Shenzhen , China
Brand Name:	CY COM
Certification:	ISO9001:2015 , RoHS
Model Number:	SC/APC shuttered adapter

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD0.12-0.8/PCS
Packaging Details:	Plastic Box
Delivery Time:	in 5-10 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	4.5 MIllion PCS / Month

Contact Now

Detailed Product Description

Structure:

With Shutter

Certification:

ISO9001:2008

Color:

Green

Packing:

25pcs/PE BOX

Highlight:

st fiber adapter

optical fiber adapter

SC / APC simplex shuttered fiber optic adapters Green High Precious Structure

1. Features

Low insertion loss
Good repeatability and interchangeability
Good environmental stability

2. Description:

Fiber optic SC adapter with metal shutter, available in both simplex and duplex version.
Blue, green, beige, aqua color available for SM/PC, SM/APC, MM/PC and OM3 type.

3. Order information:

For example: SC/APC-SM-SX-with shutter-plastic
Connector type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
Ferrule end-face: PC, UPC, APC
Core type: single-mode (SM: 9/125μm), multimode (MM: 50/125μm or 62.5/125μm)
Appearance: with ear type, no ear type
Materials: copper alloy, zinc alloy, plastic

4.Technical Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85

SC / APC simplex shuttered fiber optic adapters Green High Precious Structure 0

SC / APC simplex shuttered fiber optic adapters Green High Precious Structure 1
