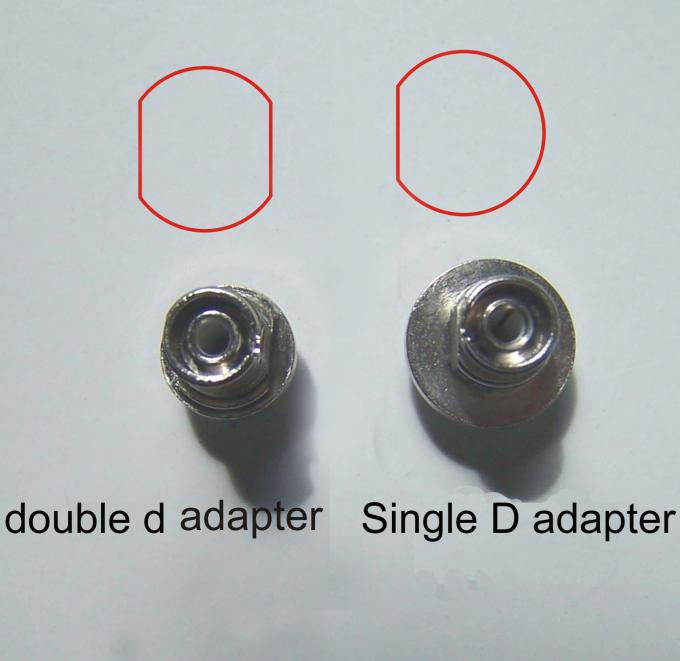

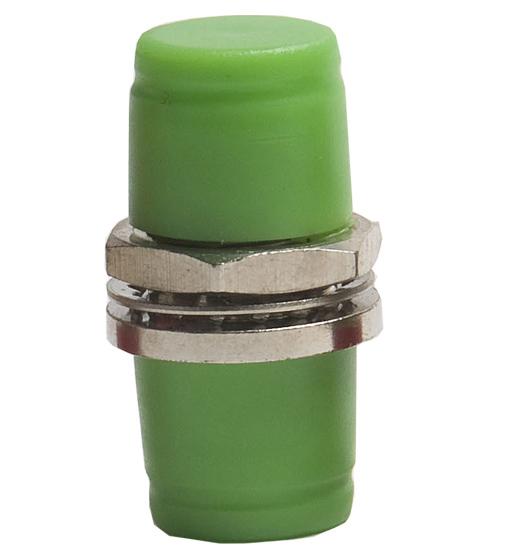

Single D Type FC APC / UPC Fiber Optic Adapter Green Or Red Color
| Color: | Green,red | Structure: | Single D Type |
| Certification: | ISO9001:2008 | Material: | RoHS |
| High Light: | st fiber adapter,optical fiber adapter |
||
Single D Type FC APC / UPC Fiber Optic Adapter Green Or Red Color
Description:
￭ FC mode used metal tread connecting structure；
￭ Low insertion loss,high stability;
￭ Good in repeatability and exchangeability ;
Specification:
| Item | Parameter |
| Insertion loss | ≤0.2dB |
| Durability | ≤0.2dB after 1000cycles |
| Operating temperature | -25℃～75℃ |
| Storage temperature | -40℃～80℃ |
Application:
- Optical fiber communcation network,data transmission,
- test equitments,LAN,CATV.
Ordering Information:
- For example:FC/UPC-SM-SX-Single "D" Type
- Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
- Ferrule end-face: PC,UPC,APC
- Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
- Appearance: with ear type, no ear type;
- Material: copper alloy, zinc alloy, plastic.
-
