LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter

China LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter supplier
LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter supplier LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter supplier

Large Image :  LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC Adapter

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: USD0.09-0.625/pcs
Packaging Details: Plastic Box
Delivery Time: 5-7 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Color: Beige Structure: Simplex/Duplex
Material: Plastic Certification: RoHS
Fiber Interface: UPC/PC

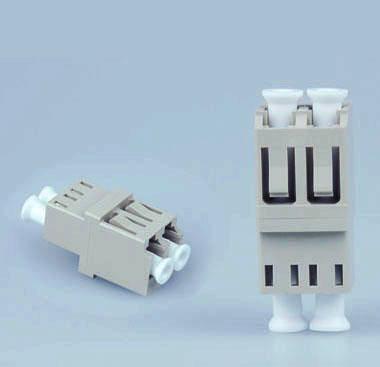

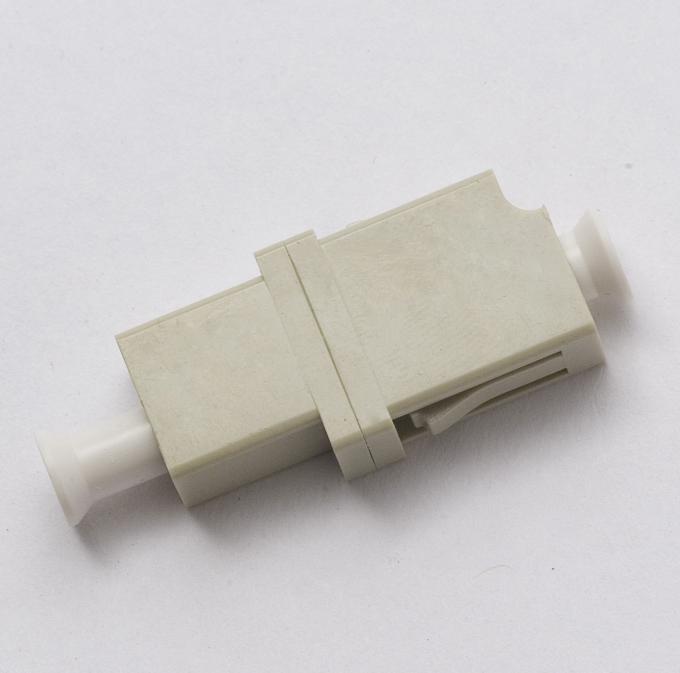

LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter

Material:

Ceramic Sleeve, Pink Plastic Housing, Steel Shell.

Features:


  • LC mode used pluggable tight locking structure
  • Low insertion loss,high stability
  • Good in repeatability and exchangeability


Application:

■ Fiber optic communication network
■ Optical broadband process network
■ CATV syetem ; Optical instrumentation network
■ Optic LAN
■ Adapter docking

Specification:


rameterUnitLC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,MTRJE2000
SMMMSMMMSM
PCUPCAPCPCPCUPCPCPCAPC
Insertion Loss (Typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return LossdB≥45≥50≥60≥30≥45≥50≥35≥55≥75
ExchangeabilitydB≤0.2≤0.2≤0.2
RepeatabilitydB≤0.2≤0.2≤0.2
DurabilityTime>1000>1000>1000
Operating Temperature-40~75-40~75-40~75
Storage Temperature-45~85-45~85-45~85


Ordering Information:

  • For example: LC/PC-SM-SX-plastic
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.
