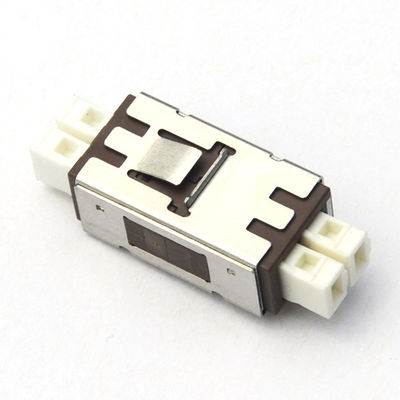

MU Simplex Duplex Fiber Optic Coupler RoHS standard For LAN / CATV
| Product name:: | MU Fiber Optic Adapter | Type:: | Singlemode/Multimode |
| Polishing:: | PC UPC APC | Dust cap:: | White |
| Application:: | FTTH System | Material:: | Metal Plastic |
| High Light: | st fiber adapter,optical fiber adapter |
||
MU Simplex Duplex Fiber Optic Coupler RoHS standard For LAN / CATV
Description
Our MU Patch Panel Adapters are available in simplex, duplex and 8-port configurations, with zirconia sleeve for high-precision alignment.
Features
- Compact design
- NTT-MU hardware compatibility
- NTT & JIS compliance
- High precision alignment
- Low insertion and return loss and back reflection*
- Corrosion resistance
Applications:
- Fiber optic subscriber network transmission/switching equipment
- CATV
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANS)
- Data processing networks
- Premise installations
- Industrial, military and medical
Specification:
| Item | Singlemode | Multimode |
|---|---|---|
| Insertion Loss | 0.2dB Typical | 0.25dB Typical |
| Return Loss | ≥50dB | ≥30dB |
| Durability | ≤0.1dB typical change, 1000 matings | |
| Operating Temperature | -40℃ ~ +75℃ | |
| Storage Temperature | -40℃ ~ +75℃ | |
| Ferrule Hole Sizes | 126μm +1/-0, Concentricity: ≤1μm | 126.5μm |
-
