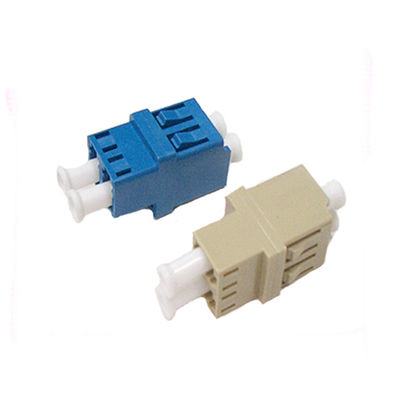

One-low one-high type Fiber Optic Coupler LC / UPC SM Duplex
| High Light: | fiber optic coupler,st fiber adapter |
||
One-low one-high type Fiber Optic Coupler LC / UPC SM Duplex
Description
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomerati-
on technic to ensure the best quality,high intensity and stability.
Features
♦ Low insertion loss;
♦ Good repeatability and interchangeability;
♦ Good environmental stability.
Application
Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.
Ordering Information
For Example: LC-PC-SM-DX-no ear type-Plastic
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type : Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Structure / Material :“DX”means Duplex,“SX”means Simplex;
with ear type, no ear type;
copper alloy,Zinc alloy, Plastic.
Specification
| Product name | Fiber Optic adapter | ||
| Item NO. | Test Item | Unit | Standard & Requirement |
| 1 | Insertion Loss (dB) | dB | ≤0.20dB |
| 2 | Repetitiveness (dB) | dB | ≤0.10dB |
| 3 | Interchangeability (dB) | dB | ≤0.20dB |
| 4 | Plug times | times | >1000 |
| 5 | Tensile strength | G | 200~600G |
| 6 | Operating temperature | Celsius | -25---+85 Celsius |
| 7 | Storage temperature | Celsius | -40---+110 Celsius |
| 8 | Humidity | Celsius | 95%RH (Non-Packaging) |
-
