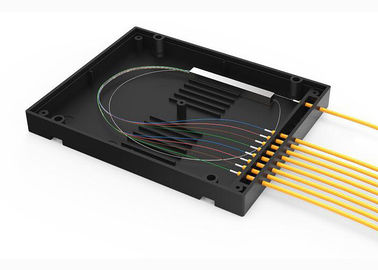

PLC 1x12 SC/UPC SM Fiber Optic Splitter applied in FTTX / PON networks
| Product: | Fiber Optic Splitter | Return Loss: | >45dB |
| Channel Ripple: | <0.3dB | Directivity: | >50dB |
| High Light: | optical communication devices,fiber optic equipments |
||
PLC 1x12 SC/UPC SM Fiber Optic Splitter applied in FTTX / PON networks
PLC Splitter is based on Planar Lightwave Circuit techmology and precision aligning process, can divide a single/dual optical input(s) into multipe optical outputs uniformly and is denoted 1×N or 2×N. PLC splitter is applied in FTTX depoyments, PON networks, CATV links and optical signal distribution currently. PLC splitter offers superior optical performance, high stablitity and high reliablitity, meets various application requirements indifferent environments.
| Techical Standard | ||||
| Type | 1:04 | 1:08 | ||
| Insertion loss(d B) | ≤7.4 | ≤10.9 | ||
| Homogeneith (d B) | ≤1.2 | ≤1.8 | ||
| Wavelength nm | 1310/1490/1550 | 1310/1490/1550 | ||
| Directivity (d B) | ≥50 | |||
| Return (d B) | ≥55 | |||
| Fiber Type | SMF-28e | |||
| Polarization Dependent Loss (d B) | ≤0.3 | ≤0.4 | ||
| Temperature Dependent Loss (d B) | ≤0.4 | ≤0.6 | ||
| Wavelength Dependent Loss (d B) | ≤0.6 | ≤0.9 | ||
| Operation Temperature °C | -40~+85 | |||
| Storage Temperature °C | -40~+85 | |||
| Adapter | FC/SC | |||
Application:
FTTX networks
PON networks
CATV links
Data Communication
Feature:
Low Insertion Loss
Low Polarization Dependent Loss
Wide Operation Wavelength
Wide Operation Temperature
High Stability and Reliability
-
MMeet the standard of Telcordia GR-1435-CORE compliant.
-
