| Cable Material: | LSZH / PVC / OFNP | Connector: | SC/UPC-SC/APC |
|---|---|---|---|
| Fiber Type: | G652D / G657A / G657B | Fiber Qty: | Simplex |
| Cable Color: | Yellow / White /Blue /Customized | Cable Length: | 1M / 2M / 3M / Customized |
| High Light: | fiber patch cord,sc fiber patch cord |
||

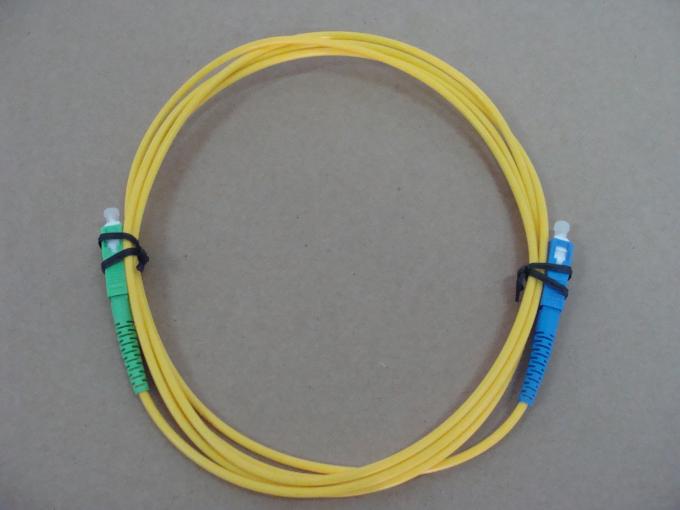

Yellow PVC Fiber Optic Patch Cable SC / APC to SC / UPC SX SM 0.9 2.0 3.0 mm
Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.
Application
♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.
Ordering Information:
Specification:
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
