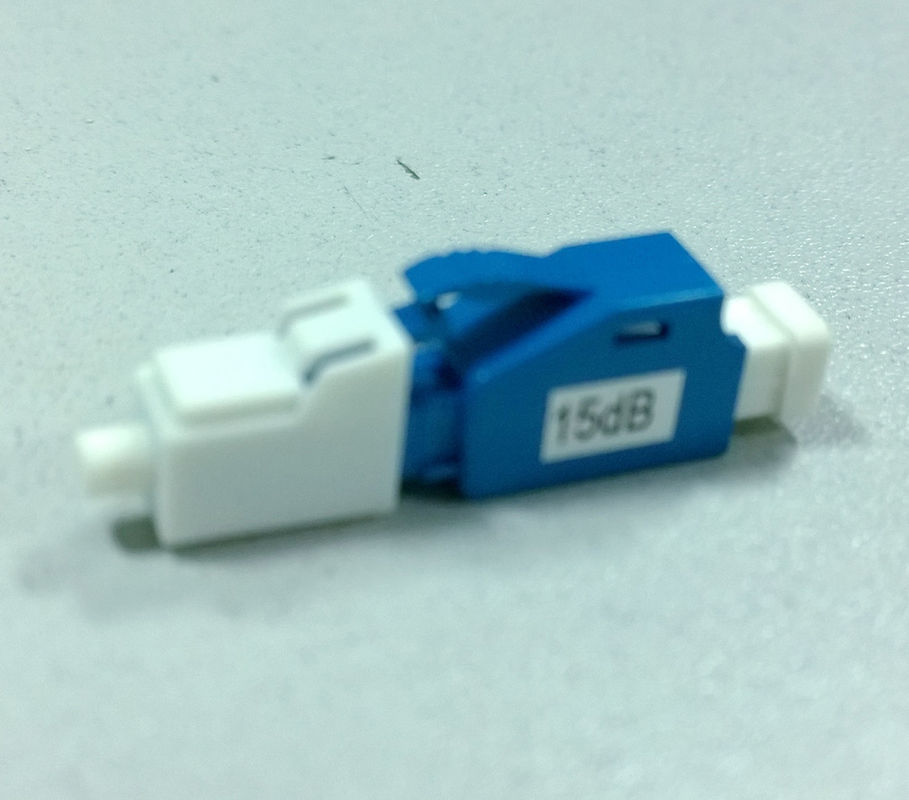

15dB female to male LC Optional Attenuator with Precision ceramic ferrule
| Type: | Female To Male LC Attenuator | Material: | Plastic Housing |
| Attenuator value: | 15dB | ||
| High Light: | fiber optic attenuator,SC optical attenuator |
||
15dB female to male LC Optional Attenuator with Precision ceramic ferrule
LC Optional Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Application:
Features:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material
Specification:
|
Item |
Unit |
Parameter |
|
Operating Wavelength |
nm |
SM:1310/1550nm MM: 850 /1300nm |
|
AttenuationRange |
dB |
1-10dB(1dB step), 15, 20, 25, 30dB |
|
Return Loss |
dB |
PC:≥50 UPC: ≥55 APC: ≥60 |
|
Attenuation Tolerance |
dB |
≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
|
Working Temperature |
℃ |
-25℃~+75℃ |
|
Storage Temperature |
℃ |
-40℃~+ 85℃ |
-
