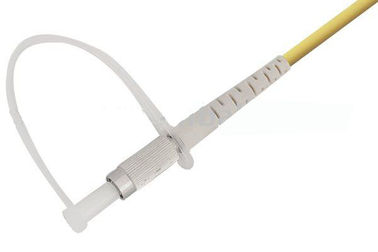

DIN zirconia ferrule SM Fiber Optic Patch Cord ≤0.3dB IL, ≥50dB RL
| High Light: | sc fiber patch cord,st patch cord |
||
DIN zirconia ferrule SM Fiber Optic Patch Cord ≤0.3dB IL, ≥50dB RL
The DIN connector meets DIN 47256. It is compact and have springloaded free floating zirconia ferrule for superior performance.
Features:
High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, Rohs
Application:
| Specification | PC SM (Standard) | PC MM(Standard) | APC SM (Standard) |
| IL (Insertion Loss) | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| RL (Return Loss) | ≥50dB | ≥35dB | ≥60dB |
| Operating Temperature | -40℃ to 75℃ | ||
| Durability | ≤0.1dBtypical change, 500matings | ||
| Available Wavelength | SM=1310&1550nm | MM=850nm |
Ordering Information:
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
- Core quantity: Simplex(SX), Duplex(DX)
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
- Cable Length: 1M, 2M, 3M....
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
- Color: Yellow, Orange, Green, Red, Blue.....
-
