Product Details:
Payment & Shipping Terms:
|
| Cable Jacket: | LSZH | Color: | Aqua |
|---|---|---|---|
| Length: | Can Be Customized | Diameter: | 0.9,2.0,3.0mm |

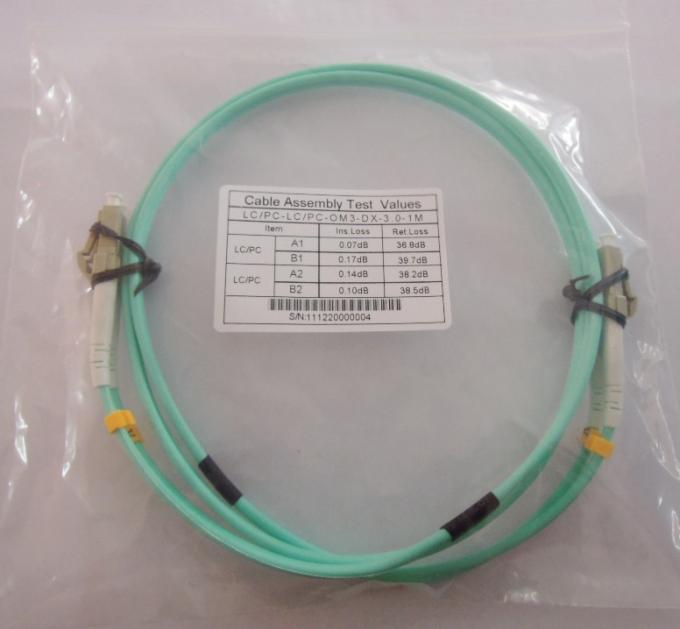

LC/UPC-LC/UPC OM3 fiber optic patch cord,CORNING fiber,LSZH cable jacket
1.Application:
•Fiber-optic communication system
•Fiber-optic data transmission
•LAN, CATV
•Fiber-optic testing system
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
3.Material of patch cord:
•Dust caps: LDPE, transparent (RoHS)
•Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
•Inner frame: PBT, white (RoHS)
•Ferrule: zirconium oxide ceramic material, white (RoHS)
•Ferrule’s handle: copper (C3602), nickelage (RoHS)
•Mechanical spring: stainless steel (RoHS)
•Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
•Snap ring: aluminium alloy 6063 (RoHS)
•Ring: copper alloy (HPD62), nickelage (RoHS)
•Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
•Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more
4.Order information:
