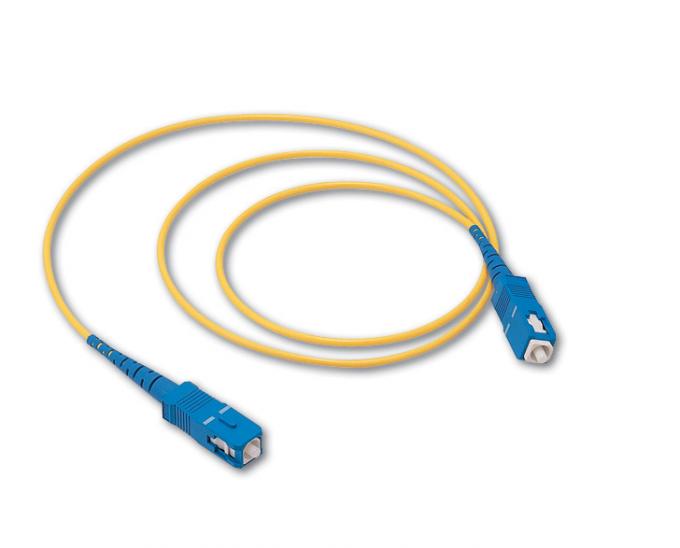

SC/UPC Fiber optic patch cord Singlemode Simplex 2.0mm Yellow OFNP cable
-
-
Large Image :
SC/UPC Fiber optic patch cord Singlemode Simplex 2.0mm Yellow OFNP cable
|
Product Details:
| Place of Origin: |
Shenzhen , China |
| Brand Name: |
CY COM |
| Certification: |
ISO9001:2015 , RoHS |
| Model Number: |
SC/UPC-SC/UPC-SM-SX |
Payment & Shipping Terms:
| Minimum Order Quantity: |
100pcs |
| Price: |
USD1.2-1.5/PCS |

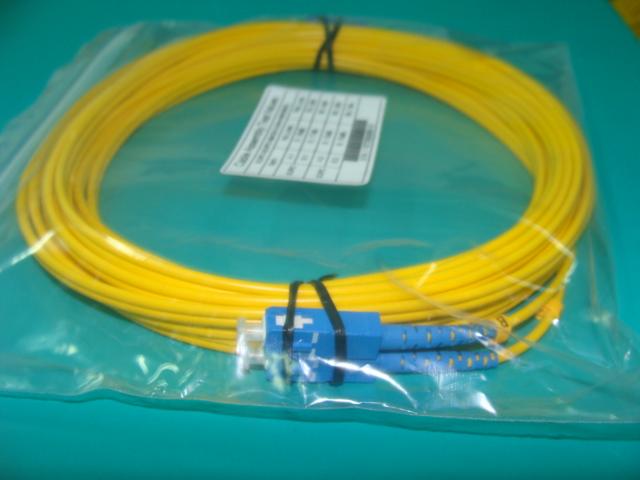

| Packaging Details: |
PE bag |
| Delivery Time: |
3-15 days |
| Payment Terms: |
L/C,T/T,Western Union payments for offline orders. |
| Supply Ability: |
1 million connector / month |
|
Detailed Product Description
| Marterial: |
PBT |
Cable Color: |
Yellow |
| Insert Loss: |
≤0.3dB |
Return Loss: |
≥55dB |
1. Description:
- SC fiber patch cord is a fiber optic cable used to attach one device to another for signal routing.
- SC stands for subscriber connector - a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and keyed.
2. Features
- Low insertion loss, high return loss
- Small, light, high dense connection
- Standard exact plastic material
- High credibility and stability
- Good in repeatability and exchangeability
3. Application:
- Testing equipment
- FTTX+LAN
- Optical fiber CATV Optical communication system
- Telecommunication
4. Material of patch cord
- Dust caps: LDPE, transparent (RoHS)
- Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
- Inner frame: PBT, white (RoHS)
- Ferrule: Zirconium oxide ceramic material, white (RoHS)
- Ferrule’s handle: copper (C3602), nickelage (RoHS)
- Mechanical spring: stainless steel (RoHS)
- Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
- Snap ring: aluminium alloy 6063 (RoHS)
- Ring: copper alloy (HPD62), nickelage (RoHS)
- Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
- Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more
5.Specification:
| Item |
Unit |
SC |
| SM |
MM |
| PC |
UPC |
APC |
PC |
| Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
| Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
| Operating wavelength |
nm |
1310,1510 |
| Exchangeability |
dB |
≤0.2 |
| Vibration |
dB |
≤0.2 |
| Operating temperature |
℃ |
-40～75 |
| Storage temperature |
℃ |
-45～85 |
| Cable diameter |
mm |
φ3.0 ,φ2.0 ,φ0.9 |
6. Order information:
- Type:SX/DX optional
- Diameter:0.9, 2.0, 3.0mm
- Length:1m, 2m, 3m to 120m
- Fiber: SM/OM1/OM2/OM3/OM4
- Material of jacket: PVC/LSZH/OFNR
