Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode

Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode
Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode
video play

Large Image :  Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC DX shuttered adapter
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD0.12-0.8/PCS
Packaging Details: Plastic Box
Delivery Time: in 5-10 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Structure: With Metal Shutter Certification: RoHS
Mode: SM,MM,OM3 Optional Color: Greem.beige,blue,aqua Optional
High Light:

fiber optic coupler

,

optical fiber adapter



Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode



♦ Order information:

  • For example: LC/APC-SM-DX-with shutter-plastic
  • Connector type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
  • Ferrule end-face: PC, UPC, APC
  • Core type: single-mode (SM: 9/125μm), multimode (MM: 50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type
  • Materials: copper alloy, zinc alloy, plastic

♦ Characteristics:

  • Low insertion loss
  • Good repeatability and interchangeability
  • Good environmental stability



♦ Introduction:

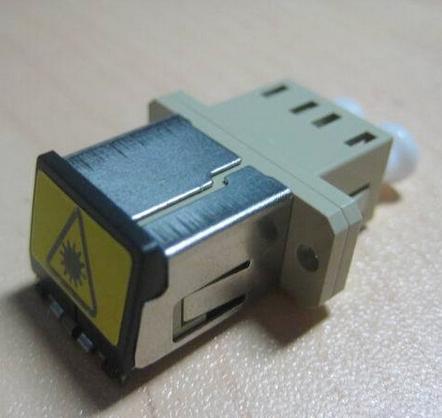

Fiber optic LC adapter with shutter, available in both duplex and quadplex version. Blue, green, beige, aqua color available for SM/PC, SM/APC, MM/PC and OM3 type.






♦ Technical Parameter:



rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85





Duplex LC metal shuttered Fiber Optic Adapter single mode or multimode 0
