LC Multimode 50/125 Duplex Fiber Optics Cable Connectors Insertion Loss <=0.3dB
| Color: | Beige | Certification: | SGS |
| Insert-pull test: | 1000(times) <0.2dB | City of origin: | Shenzhen,China |
| High Light: | fiber optic fc connector,optical fibre pigtail |
||

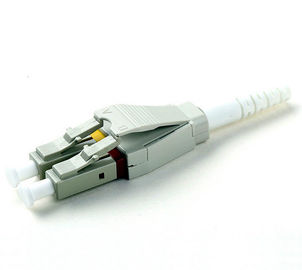

LC multimode duplex uniboot optical fiber connector,Beige color
Characteriatics:
- Have two dismount gap, easy to dismount
- Streamline design, good aesthetic
- Uniboot connector cable management
- Switchable Connector to change polarity
- MINI Boot & Flex angle boot available
- Right Angle Clip well for panel management
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
<0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
>25dB |
|
Insert-pull test |
1000(times) <0.2dB |
|
|
Operating temperature |
-40°C~ +80°C |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: <1um |
127um concentricity deviations: <3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Drawing:
Application:
- CATV, metro test equipment; FTTH;
- Telecommunication networks;
- Local area networks (LAN);
- Wide area networks (WAN);
- Premise installations;
- Data processing networks;
- Video and military active device termination.
- Optical Distribution Frame
- Optical Network Equipments
-
