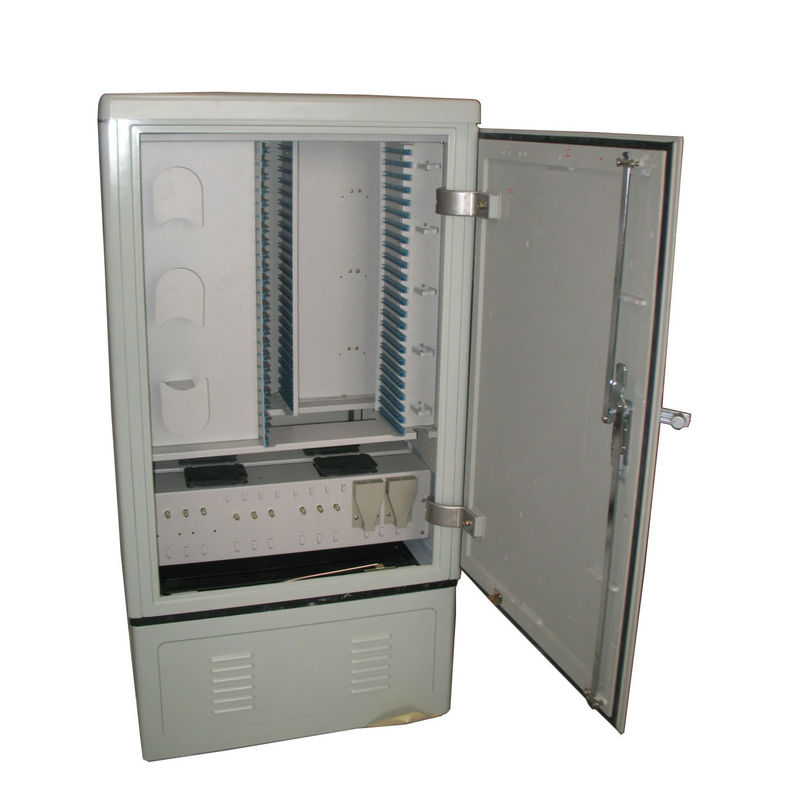

Stainless steel material 576 cores cable cross-connection cabinet
| Material: | Stainless Steel | Protection class: | IP65 |
| Max capacity: | 576 Fibers | Certificaton: | ISO9001:2008 |
| High Light: | optical fiber tools,fiber termination kit |
||
1. Descriptions:
It is suitable for outdoor light splitting in FTTX application, provided with light splitting function, easy for installation, safety in use and reducing costs.
2. Features:
- Splitting light by inserting splitter module, save construction costs
- New type of lock, high security
- Stainless steel body material, protection performance class reaches IP65
- New slide-type fixed structure for cable, flexible operation
- Security protection structure for radius of curvature of the fiber-optic
3.Material
♦SMC, Cold-rolled steel or stainless steel.Technical Parameters
♦ Operating temperature: -5~+40℃;
♦ Storage temperature: -40~+70℃≤0.5dB;
♦ Relative humidity:≤85%(+30℃);
♦ Atmospheric pressure: 70~106 KPa;
♦ Insertion loss: ≤0.2dB;
♦ Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC);
♦ Isolation resistance:≥1000MΩ/500V(DC);
♦ Durability:＞1000 times;
♦ Anti-voltage strength: ≥3000V(DC)/1min.
4.Ordering information:
| Type | Dimension (mm) | Max capacity /splitting spot |
| GXF-05A | 1460*750*360 | 192/128 |
| GXF-05B | 1080*600*330 | 96/64 |
| GXF-05C | 1460*750*620 | 384/256 |
Competitive Advantage:
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great reputation for their advanced and precise quality worldwide.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management standard ISO9001:2008.
service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
-
AGood Durability,have a dedicated after-sales team.
-
AGood partner,Solve the problem in time!
-
INice packing,delivery fast,satisfied.
