SC / PC - ST / PC Hybrid Fiber Optic Adapter Zinc Alloy Material

China SC / PC - ST / PC Hybrid Fiber Optic Adapter Zinc Alloy Material supplier

Large Image :  SC / PC - ST / PC Hybrid Fiber Optic Adapter Zinc Alloy Material

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: SC-ST

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: USD1.12-3.24/PCS
Packaging Details: Plastic Box
Delivery Time: in 3-5 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Material: Zinc Alloy Type: SC-ST Hybrid Adapter
Certification: ISO9001:2008
High Light:

st fiber adapter

,

optical fiber adapter

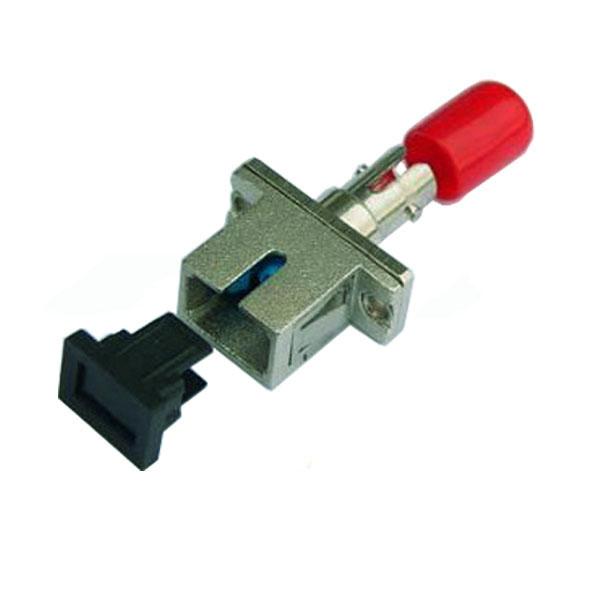

SC / PC - ST / PC Hybrid Fiber Optic Adapter Zinc Alloy Material

Description:

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the
interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different
kinds of fiber connectors or cable assemblies need to be linked with each other.

Features:
-Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST…
-Low insertion loss, high return loss
-Good compatibility
-High precision of mechanical dimensions
-High reliability & stability
-Ceramic or Bronze Sleeve
-PC , APC , UPC optional
-Simplex / Duplex
Application:
-Local Area Network
-CATV System
-Telecommunication Networks

Specification:


rameterUnitLC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,MTRJE2000
SMMMSMMMSM
PCUPCAPCPCPCUPCPCPCAPC
Insertion Loss (Typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return LossdB≥45≥50≥60≥30≥45≥50≥35≥55≥75
ExchangeabilitydB≤0.2≤0.2≤0.2
RepeatabilitydB≤0.2≤0.2≤0.2
DurabilityTime>1000>1000>1000
Operating Temperature-40~75-40~75-40~75
Storage Temperature-45~85-45~85-45~85


Ordering Information:

  • For example:SC-ST, single mode, SX hybrid adapter
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.

SC / PC - ST / PC Hybrid Fiber Optic Adapter Zinc Alloy Material
