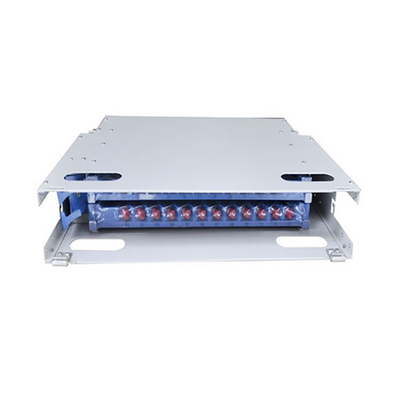

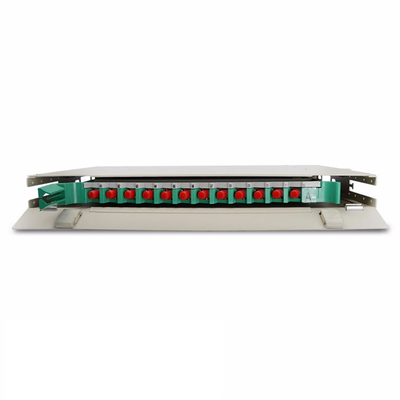

Rack Mount 12 Core SC FC LC ODF Optical Distribution Frame
| Product name: | Fiber Optic Rack Mount ODF | Type: | Racks & Enclosure |
| Fiber Capacity: | 12, 24, 48, 96 Or 144 Ports | Patch Panel Type: | Stick Type, Sliding Type, Rotary Type |
| Storage Temperature: | -45°C~+60°C | Return Loss: | 50dB |
| High Light: | LC ODF Optical Distribution Frame,SC FC LC ODF,Rack Mount 12 Core ODF |
||
Rack Mount 12 Core SC FC LC ODF Optical Distribution Frame

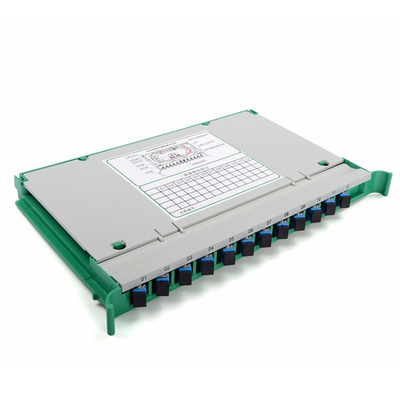

Ftth optical fiber distribution frame ODF rack mount 12-144 core SC FC LC splicing tray
Description:
Optical Distribution Frame (ODF) is integrated components in any fiber management system to handle termination and cross-connection of cables. Pre-terminated ODFs with cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. We offer optical distribution frame in different size, such as 1U 12 ports, 1U 24 ports, 2U 36ports, 3U 48 ports, 4U 72 ports. Several adapter options are available.
Features :
1. LowInsertionloss
2. Low PDL
3. HighReturnLoss
4. UniformPowerSplitting
5. CompactDesign
6. Wide Operating Wavelength
7. WideOperatingTemperature
8. ExcellentEnvironmental & Mechanical Stability
9. Qualified Under Telcordia GR-1221 and GR-1209
Technical Parameters
| Material | Steel and ABS plastic |
| Finished product | black appearance |
| Working temperature | -40℃ ~ + 60℃ |
| Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
| Curvature radius | ≥40mm |
| Lateral pressure-resistance | 500N |
| Resistance | 750N |
-
