2 Wavelength Metro Network CWDM Add Drop Multiplexer

Large Image : 2 Wavelength Metro Network CWDM Add Drop Multiplexer

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO RoSH SGS
Model Number:	CWDM

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Individual gift carton box
Delivery Time:	8-9 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Model Type:	Plug-in Module	Wavelength:	1270~1610
Connector:	LC/UPC Or Customer Specified	Application:	FTTx Solutions
Channel Number:	4 Channel	Polarization Dependent Loss:	Ent Loss: ≤0.2dB
Fiber Type:	Corning SMF-28e	Size:	1008010mm
Highlight:	CWDM Add Drop Multiplexer , Metro Network Add Drop Multiplexer , 2 Wavelength CWDM

2 Wavelength Metro Network CWDM Add Drop Multiplexer

Reliable 2 Wavelength 4ch 1 service CWDM Add and Drop Multiplexer for Metro Network

Description

Coarse Wavelength Optical Add/Drop Multiplexing(OADM), 20nm Channel Space, Bi-Direction, fixed wavelength, 2 Wavelengths,1 sevice Add/Drop for EAST and WEST

Features

Cost-effective CWDM device

Reliable passive thin film filter

Low optical insertion loss

No adhesive on optical path

Applications

Metro Network

Data center communication

Specification:

Parameter	4CH	6CH	8CH
Center wavelength (nm)	ITU or ITU+1(Customizable starting wavelength)
Product Features	Mux orDemux or Mux&Demux
Channel wavelength (nm)	1270~1610
Center wavelength accuracy (nm)	±0.5
Channel pitch (nm)	20
Channel passband (@ -0.5db bandwidth (nm)	>14
Insertion loss (dB)	≤1.4	≤2.6	≤3.0
Channel uniformity (dB)	≤0.5	≤0.5	≤0.5
Channel ripple (dB)	0.3
Isolation (dB) adjacent	>30	>30	>30
Isolation (dB) Non-adjacent	>40	>40	>40
Polarization-dependent loss (dB)	<0.2
Polarization Mode Dispersion (PS)	<0.1
Directivity (dB)	>50
Return loss (dB)	>45
Connector type	LC/APCOr customer specified
Maximum power (mW)	500
Working temperature (℃)	-20~70
Storage temperature (℃)	-40~85
Package type (mm)	LGX,Box, rack or customer specified
Package size (mm)	LGX:201x256x44 or 155x100x29 Box:100x80x10 or 120x80x18 or 141x120x28 rack :1U: 484x260x44 or 2U: 482x260x88

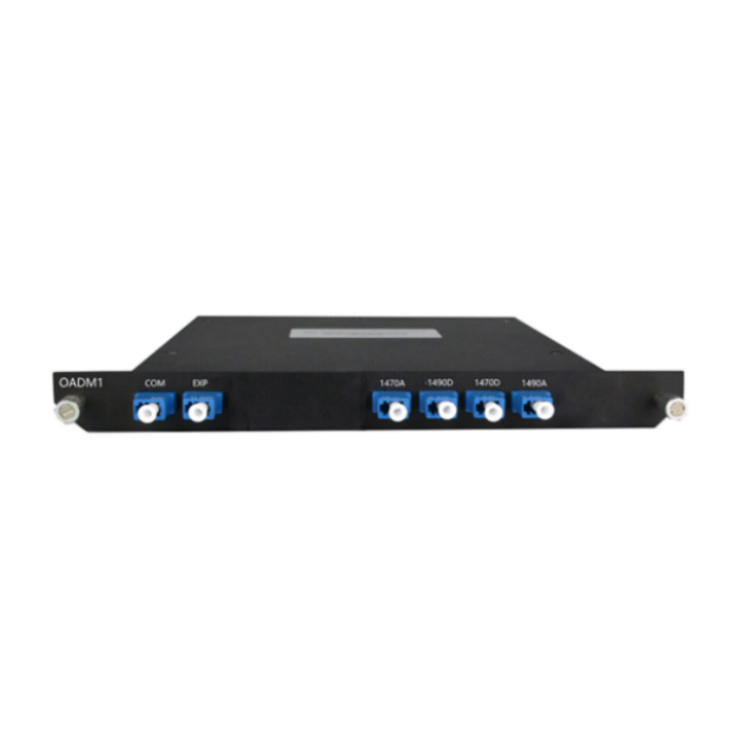

2 Wavelength Metro Network CWDM Add Drop Multiplexer 0

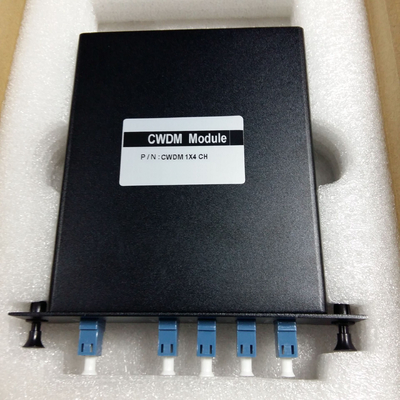

2 Wavelength Metro Network CWDM Add Drop Multiplexer 2
