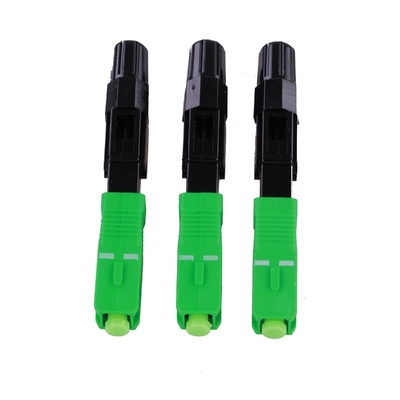

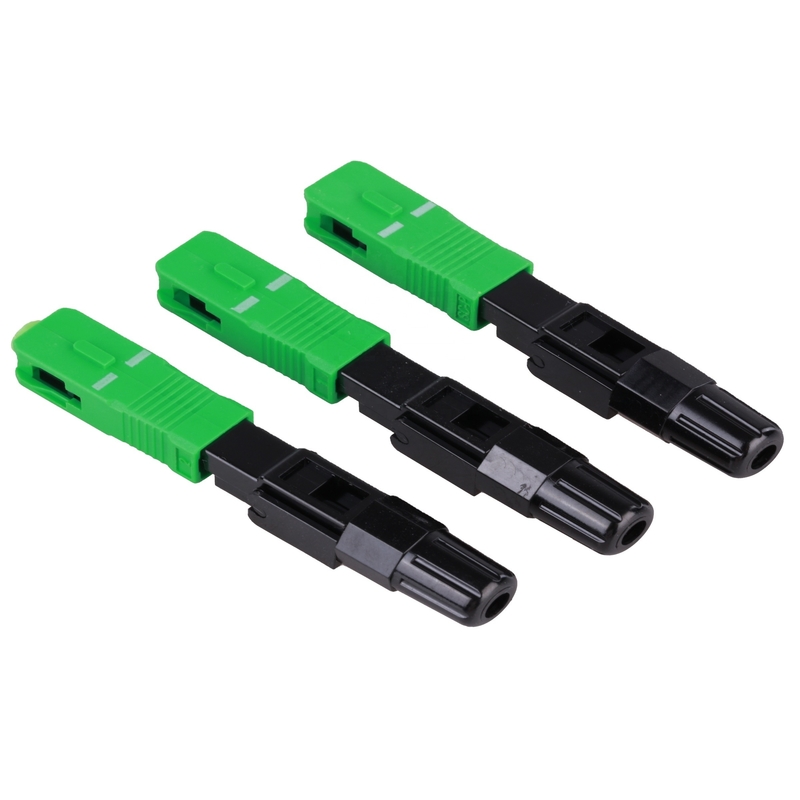

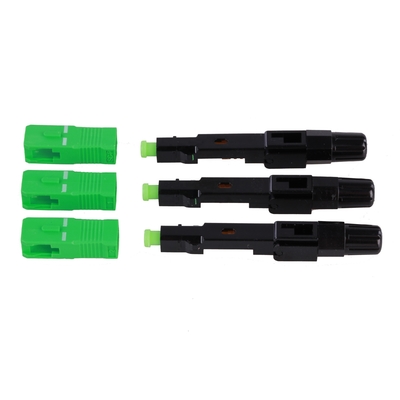

SC APC Fiber Optic Connector Assembly
| Product name: | Fast Connectors | Color: | Green |
| Connector: | SC APC | Length: | 55MM |
| Insertion cycle: | More Than 1000 Times | Application: | Telecom Networks FTTX CATV |
| High Light: | SC APC Fiber Optic Connector Assembly,FTTH Optical Connector Assembly,SC APC Fiber Connector Assembly |
||
1). An fiber optic quick connector terminates the end of an optical fiber, and enables quicker connection and disconnection than
splicing.
2). The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light
due to reflection or misalignment of the fibers.
Feature:
1). Low insertion loss
2). High return loss (low amounts of reflection at the interface)
3). Ease of installation
4). Low cost
5). Reliability
6). Low environmental sensitivity
7). Ease of use
Product length
50mm ≤L≤60mm
Optical Characteristics
| Category | Specification | Remarks | |
| Aoolicable for | Drop cable.Indoor cable | ||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | S | About 50(no fiber cut) | |
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥50 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40~+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
Application:
1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)
-
