RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

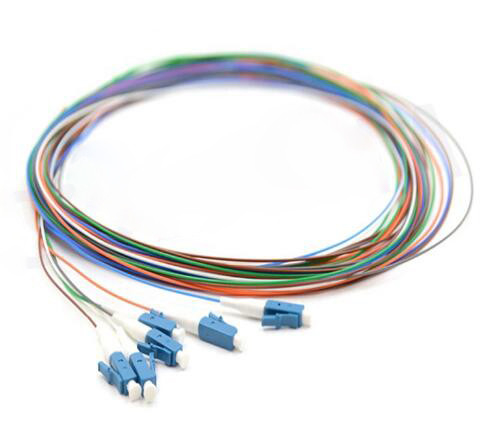

Large Image : RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC LC FC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

Certification:	RoHS,ISO9001	Cable Color:	Colors
Connector:	SC,FC,LC	Fiber Count::	4/6/8/12 Fibers
Application:	FTTH FTTB FTTX Network,cabling System	Cable Diameter:	0.9/2.0/3.0mm
Highlight:	Multimode Fiber Optical Pigtails , Singlemode Fiber Optical Pigtails , RoHS Sc Lc Fc Pigtails

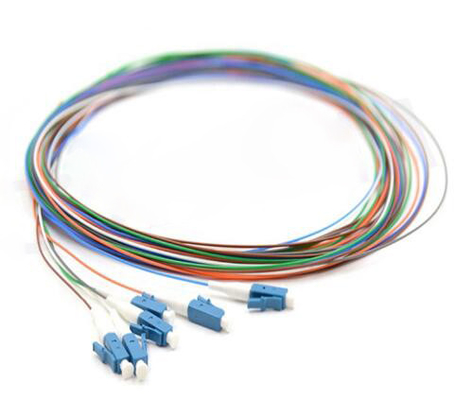

RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails

sc lc fc singlemode multimode fiber optical pigtails Customized cable color

Description:

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Parameters

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃

RoHS Sc Lc Fc Singlemode Multimode Fiber Optical Pigtails 0
