Product Details:
Payment & Shipping Terms:
|

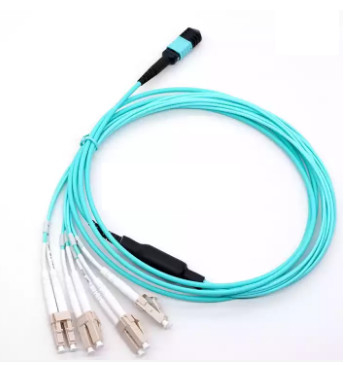

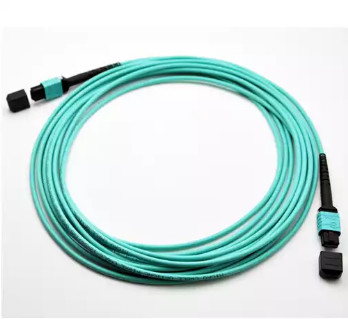

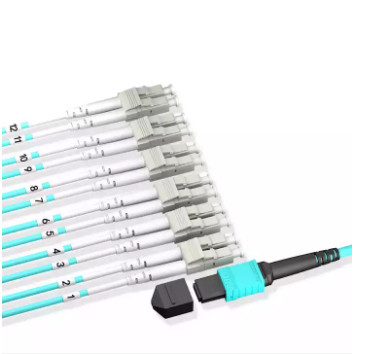

| Use: | FTTH, FTTH FTTB FTTX | Type: | MPO MTP Fiber Optic Patch Cord |
|---|---|---|---|
| Network: | 4g | Fiber Type: | OM3, OM4 |
| Core: | 12 Core | Certificates: | ISO9001 |
| LC Connector RL: | ≥30dB | LC Connector IL: | ≤0.2dB |
| Attenuation At 850nm: | ≤2.3dB/km | MTP Connector RL: | ≥20dB |
| Fiber Mode: | OM2; OM3; OM4 |
Features:
1. Push & pull tabs
2. High density - ruggedized fan out allows for direct connection between the backbone and active equipment eliminating rack space usage
3. Rapid deployment - factory terminated modular system saves installation time and labor cost
4. Reliability - 100% tested, the combination of high-quality components and manufacturing quality control guarantees product to the highest standards
Applications:
1. Datacenter
2. Telecommunication networks
3. Broadband network
4. LAN, WAN, SAN
| Connector | MPO/MTP(Male/Female) | LC/SC/FC/ST | |||||
| Fiber Mode | SM(OS2) | MM(OM1/OM2/ OM3/OM4/OM5) |
SM(OS2) | MM(OM1/OM2/ OM3/OM4/OM5) |
|||
| Polishing Type | PC | APC | PC | UPC | APC | UPC | |
| Insertion Loss | Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite) |
Typical≤0.50dB Max≤0.25dB Typical≤0.10dB (Elite) Max≤0.35dB (Elite) |
Typical≤0.15dB Max≤0.3dB |
Typical≤0.15dB Max≤0.3dB |
|||
| Return Loss | ≥50dB ≥55dB(Elite) |
≥60dB ≥65dB(Elite) |
≥35dB | ≥50dB | ≥60dB | ≥30dB | |
| Repeatability | ≤0.1dB | ||||||
| Durability | ≤0.2dB (1000 times mating) | ||||||
| Fiber Count | 8/12/24/48/72/96/144 Fibers | ||||||
| Cable Jacket | PVC/OFNR/OFNP/LSZH | ||||||
| RoHS Compliancy Status | Compliant |
||||||
