Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC

Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC
Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC

Large Image :  Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC

Product Details:
Place of Origin: Shenzhen
Brand Name: CY COM
Certification: ISO9001, CE, RoHS, UL, ETL.Etc
Model Number: SC APC UPC
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: PE-Perper box
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Type:: Fiber Optic Connector, Fast Connector, SC/UPC Application: FTTH, FTTX, FTTH
Wavelength: 850/1310/1550nm Impact Test: <0.2dB, Typical 0.1 DB1.5m, 10 Repetitions
Return Loss: PC: ≥40dB (typical ≥45dB); APC: ≥50dB (typical ≥55dB) Fiber Diameter: 125um

Fiber Optic Fiber Optik Konektor 50mm SC UPC Optic Fast Connector SC APC Connector Accessories Conector Rapido de Fibra Optica

【About Product】
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

【 Product Features】
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE

【 Application】
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3.China Supplier Fiber Optical field Assembly 60mm SC UPC Fast Connector
4. Patch panels
5. FTTH 6. Field word
Products Description
Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 0
Product name
Fiber Optic SC APC Square Fast Connector Quick Connector Adapter Cold Connector Field Assembly LW-FAFC-SC-01
Applicable Cable
2*3mm
Fiber Diameter
125um
Coating Diameter
250um
Fiber Mode
Single Mode
Insertion Loss
PC: ≤0.2dB (max. 0.4dB); APC: ≤0.2dB (max. 0.4dB)
Return Loss
PC: ≥40dB (typical ≥45dB); APC: ≥50dB (typical ≥55dB)
Pull Test
<0.2dB, 4N load (0.125 fiber);
Impact Test
<0.2dB, 40N load (2.0*3.0mm, 3.0mm)
Durability Test
<0.2dB, Typical 0.1 dB1.5m, 10 repetitions

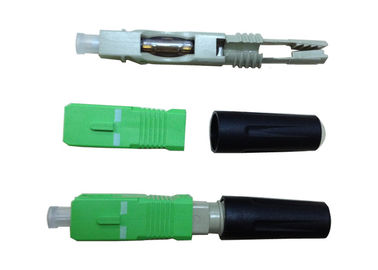

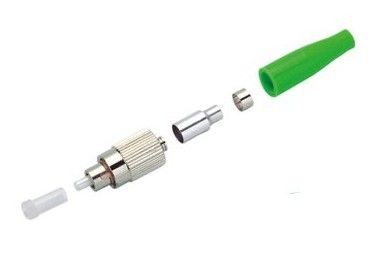

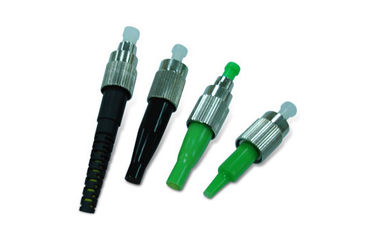

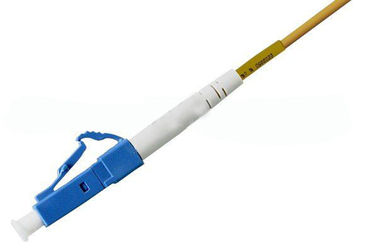

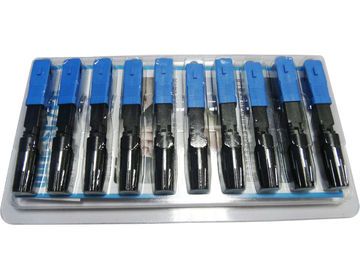

Product show

Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 1Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 2Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 3
Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 4Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 5Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 6Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 7Fast Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC 8
