LC APC To LC UPC 3M G652D Single Mode Fiber Patch Cord
| Product Name: | Fiber Patch Cord | Cable Color: | Yellow |
| Cable Type: | G652D, G657A1 | Connector: | LC APC To LC UPC |
| Cable Dimension: | 0.9mm, 2.0mm,3.0mm | Wavelength: | 1310nm Or 1550nm |
| High Light: | fiber optic patch cable,fiber patch cord |
||
LC APC To LC UPC 3M G652D Single Mode Fiber Patch Cord
Feature:
Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules
Specifications:
- Simplex, single fiber, one connector on each end of the cable
- Standard zip cord jacketing, OFNR
- Corning fiber and cladding, Singlemode (9/125)
- APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
- 1m,2m,3m,5m.... in length
| fiber connector | LC/APC-LC/UPC | Mating cycles | >1000 |
| length | 3M | Operating temperature | -40℃-85℃ |
| Insertion Loss | ≤0.3dB | Tensile strength | ≥200N |
| mode | singlemode | Jacket | PVC or LSZH |
| weight | 30pair/KG | cable diameter | 3.0mm(oem2.0mm,0.9mm) |
Technical Parameters
| Connector type | FC,SC,LC,ST,MU,E2000,D4,DIN | |||
| Fiber mode | SM | MM | ||
| End face | PC | UPC | APC | PC |
| IL(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| RL(dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Other model | MT-RJ,MPO | |||
| IL(dB) | ≤0.7 | / | ≤0.7 | ≤0.5 |
| RL(dB) | ≥30 | / | ≥50 | ≥25 |
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

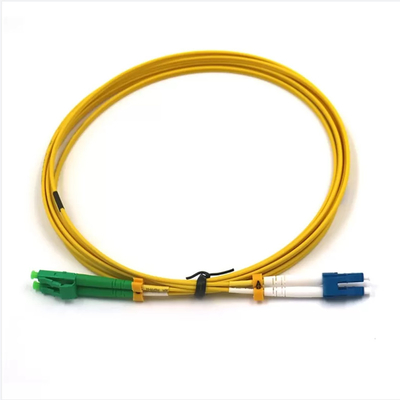

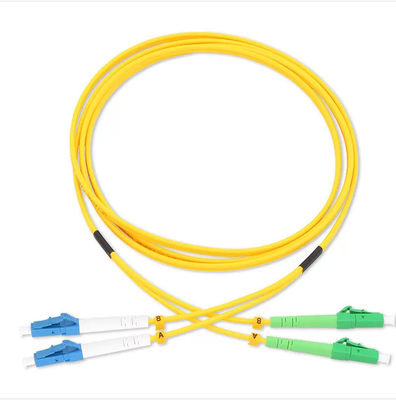

Product picture:
Factory Picture:
Packing:
-
TLow Loss insertion,good quality!reliable supplier!
-
LShip fast,good cost-effective.great sale-after service.
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
