Simplex FC UPC Breakout Mpo Fiber Cable 12 Core
| Polarity: | A/B/C | Connector Type: | Female /Male |
| Cable Color: | Yellow / Aqua / Orange / Violet / Purple | Fiber Qty: | Singlemode Or Mutilmode |
| Loss Data: | Elite Loss/Standard Loss | Breakout Lengthe: | 0.5M / 1M /1.5M / Customized |
| High Light: | Simplex Mpo Fiber Cable,12 Core Mpo Fiber Cable,12 Core MPO Breakout Cable |
||

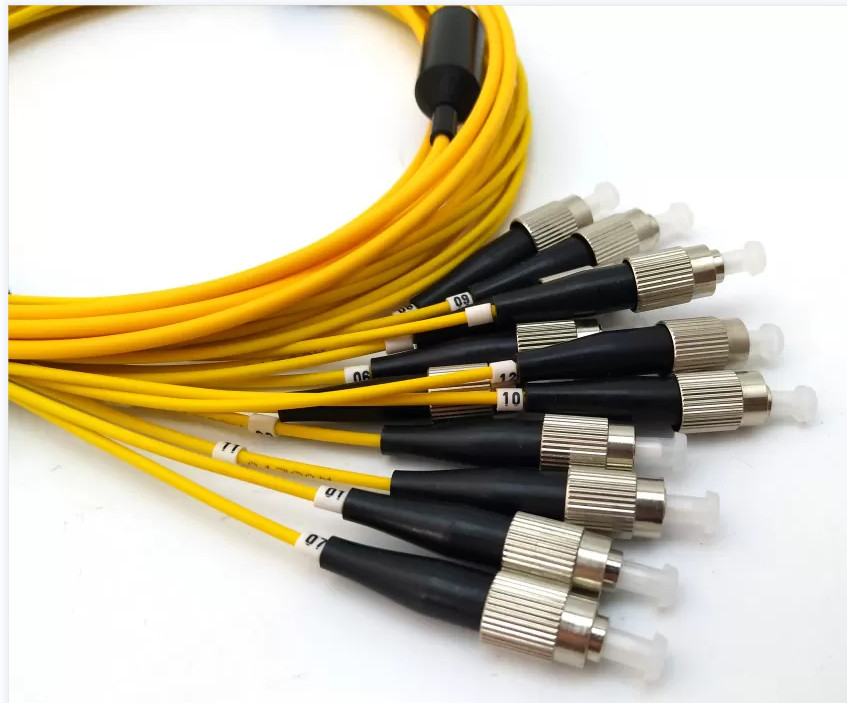

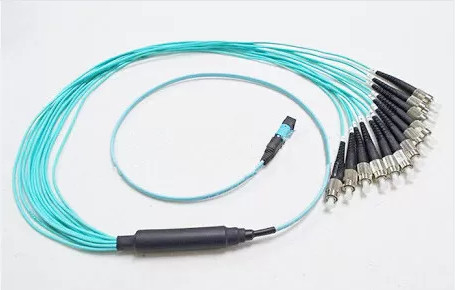

Simplex 12 Core FC UPC Breakout Mpo Fiber Cable
Singlemode Mutilmode MPO-12 core FC UPC Breakout Patch Cord Simplex Black connector
Description:
MTP and MPO multimode cross over fiber optic cables. Cross over MPO cable is available configurations are Female to female or a male to male and male to female.
Cable options include, Riser Rated Jacket, Plenum rated jacket, LSZH. Round cable, ribbon cable, or bare ribbon cable.
The male version has MTP pins. Available in 4,8,12, 24, and 48 fiber array configurations.

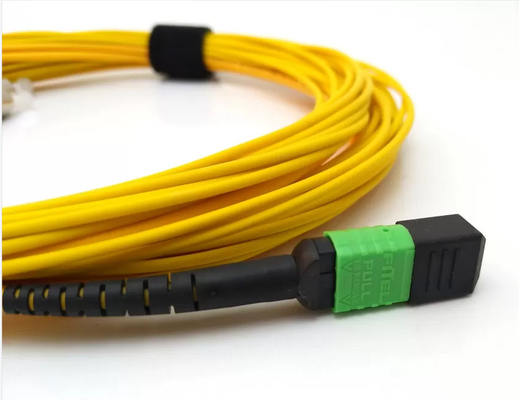

MTP Connector is Female or Male Elite Usconec Connector Yellow housing,Cable is 12 fiber Singlemode Mini Core cable,Round Fan-out Kits,Breakout 2.0mm.Inside fiber color from 1~12 is Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Rose ,Aqua.
Features:
1. High-quality ferrules
2. Strict quality testing: Insertion Loss and Return Loss 100% tested
3. Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards
4. Various fiber types: OS2(9/125um), OM1(62.5/125um), OM2(50/125um), OM3 (50/125um), OM4(50/125um) and OM5(50/125um), all from YOFC and Corning
5. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon request
6. Available fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.
7. LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectors
8. We welcome custom cable order per your specific request
Application:
1. CATV & FTTX
2. Active device termination
3. A variety of connectors
4. Precise installations
5. Industrial applications
6. Fiber optic communication networks
7. Fiber optic equipment and instrument
8. Long-distance, outdoor/indoor cabling, trunking, etc
MTP/MPO Specifications:
| Connector | MPO/MTP(Male/Female | LC/SC/FC/ST | ||||
| Fiber Mode | SM | MM | SM | MM | ||
| Polishing Type | PC | APC | PC | UPC | APC | UPC |
| Insertion Loss | Typical≤0.3dB Max≤0.75dB Typical≤0.15dB(Elite) Max≤0.35dB(Elite) |
Typical≤0.5dB Max≤0.25dB Typical≤0.10dB(Elite) Max≤0.35dB(Elite) |
Typical≤0.15dB Max≤0.3dB |
Typical≤0.15dB Max≤0.3dB |
||
| Return Loss | ≥50dB ≥55dB(Elite) |
≥60dB ≥65dB(Elite) |
≥35dB | ≥50dB | ≥60dB | ≥30dB |
| Repeatability | ≤0.10dB | |||||
| Durability | ≤0.20dB(1000 times mating) | |||||
| Fiber Count | 8/12/24/48/72/96/144 Fibers | |||||
| Cable Jacket | PVC/OFNR/OFNP/LSZH | |||||
| RoHS Compliancy | Compliant | |||||
Order information:
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
-
