High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB

High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB
High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB
video play

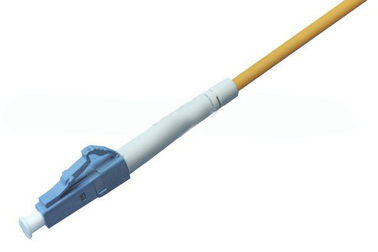

Large Image :  High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Product Name: Fiber Optic Patch Cord Ferrule End-face: PC, UPC, APC
Core: Simplex, Duplex Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length: 1, 2, 3 Meter Or Customized Cable Type: PVC, LSZH, OM3, OFNR, OFNP
High Light:

fiber patch cord

,

sc fiber patch cord

High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL  0.2dB

LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, Rohs



Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network

Specification PC(Standard) PC(Standard)
IL (Insertion Loss) ≤0.3dB ≤0.2dB
RL (Return Loss) ≥50dB ≥55dB
Operating Temperature -40℃ to 75℃
Durability ≤0.1dBtypical change, 500matings
Available Wavelength SM=1310&1550nm

Ordering Information:

  1. Connector type: FC, SC,   LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
  4. Core quantity: Simplex(SX), Duplex(DX)
  5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  6. Cable Length: 1M, 2M, 3M....
  7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
  8. Color: Yellow, Orange, Green, Red, Blue.....

High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB 0High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB 1High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB 2High Return Loss LC SM SX 3.0mm Cable Diameter Fiber Optic Patch Cord RL 50dB , IL 0.2dB 3
