Cold-roll steel box, small size, plastic splice tray inside Fiber Optical Terminal Box
| High Light: | optical terminal boxes,fiber optic equipments |
||

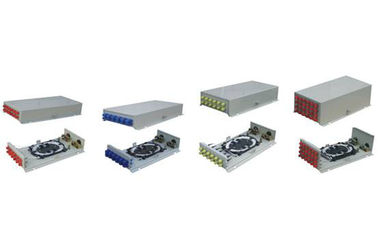

Cold-roll steel box, small size, plastic splice tray inside Fiber Optical Terminal Box
It is made of cold-roll steel box, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fibers.
Features:
Dimension: 26.5 *15.5 *4.8cm
Weight: 1kg
Max. Capacity: 8 fibers
Non-sealed type, fixed by bolt.
Two cable ports for indoor cable connection
Easy for operation, has high containing ability for surplus pigtails
Can connect/reconnect to adapters more than 200 times
Connector for FC, SC, ST or LC
Applications:
Suitable for Pigtail, ribbon and bunch cable connectors distribution
Used in wall or terrace installation
-
AReliable manufacturer,reassuring,experienced!
-
MMeet the standard of Telcordia GR-1435-CORE compliant.
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
