ST PC&APC Fiber Optic Connector ,High Precision Alignment
| High Light: | fiber optic fc connector,fiber optics cable connectors |
||
High Precision Alignment ST Fiber Optic Connector , PC And APC Available
Feature:
- Low insertion loss and return loss
- Boots in a variety of colors
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- High precision alignment

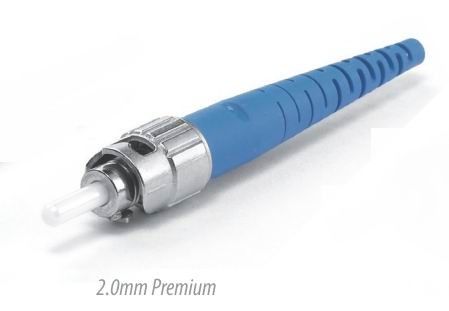

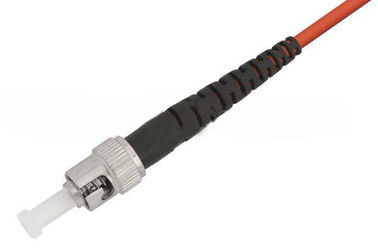

ST Fiber Optic Connector
Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.
Availability:
- -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits without ferrule are available.
- -PC and APC are available
Mechanical Drawings:
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
＜0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
＞25dB |
|
Insert-pull test |
1000(times) ＜0.2dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: ＜1um |
127um concentricity deviations: ＜3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Application:
-
Kbulk purchase for long time,good service.reliable quality!
-
MMeet the standard of Telcordia GR-1435-CORE compliant.
-
KGood quanlity,cooperate for long time,reliable!
