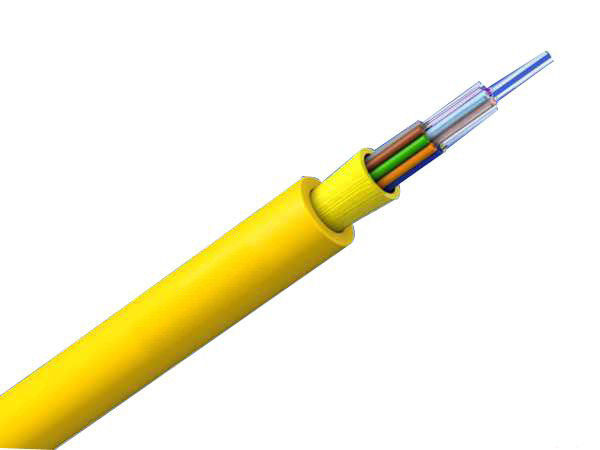

High Strength Fiber Optical Cable Sinlge Mode For Indoor Distribution
| High Light: | fiber patch cables,splicing fiber optic cable |
||
High Strength Fiber Optical Cable Sinlge Mode For Indoor Distribution
Features:
- High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission
- Small outer diameter, light weight, falme-retardant, easy to strip, low attenuation, gighly soft
- Direct splicing between tight buffered cables and need no tie-in box or pigtail
- Suitable for installation, operation and convenient for maintence
Application:
- Adopted to indoor distribution.
- As pigtail of communication equipment.
- Suitable for communication equipment served.
- Suitable for floor connection
Specification:
| Fiber Count |
Out sheath Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 2 | 3 | 15 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
| 4 | 4 | 22 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
| 6 | 4 | 23 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
| 8 | 5 | 27 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
| 10 | 5.5 | 30 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
| 12 | 6 | 35 | 600 | 200 | 20D | 10D | 1000 | 200 | -20~60 |
Order Information:
- Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
- Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
- Fiber count: 2-48
- Cable length: 2000M/Drum( customized, MOQ=2000M)
- Cable Jacket: PVC,LSZH,OFNR,OFNP
-
