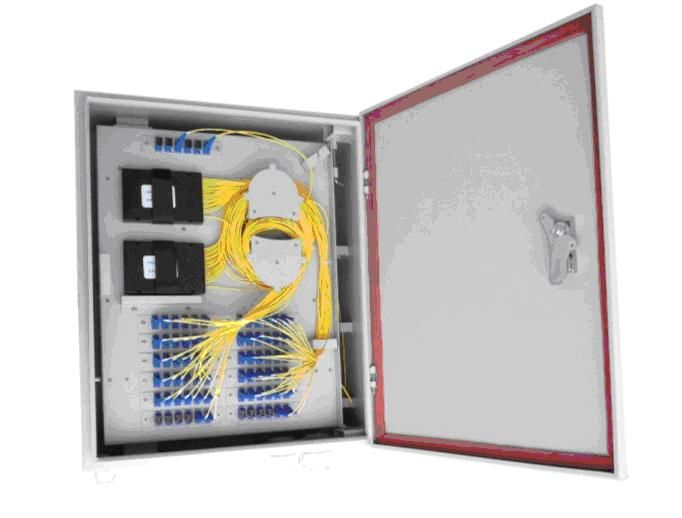

Water Proof Fiber Distribution Box , Wall Mounted Cold Rolled Steel Body
| High Light: | ftth splitter box,ftth fiber optic terminal box |
||
Water Proof Fiber Distribution Box , Wall Mounted Cold Rolled Steel Body
Applicable in FTTH project
Suitable for corridor, basement, room and building's outer walls application
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Features:
High quality cold rolled steel body, electrostatic spraying with water proof powder
High quality water proof lock, wall mounted cabinet
Operating temperature:-30°C~+55°C, storage temperature: -40°C~+60°C
With access to 2 pcs of 12 cores fiber optic cables and up to 64 pcs of customer cables
Suitable for multi fiber optic cable access as well
Suitable for 72 pcs of SC, FC, ST adapters, easy to installation adn maintenance
Support branch connection styles
|
Item |
CY/FDB-064 |
|
Dimenstion (mm) |
H600xW570xD190 |
|
Cable diameter (mm) |
Ф10～Ф14 |
|
Cable ports |
2 holes |
|
Max capacity of splice tray |
24 (single fiber) |
|
Max quantity of splice tray |
3 |
|
Max capacity of main backbone cable |
12 (single fiber) |
-
