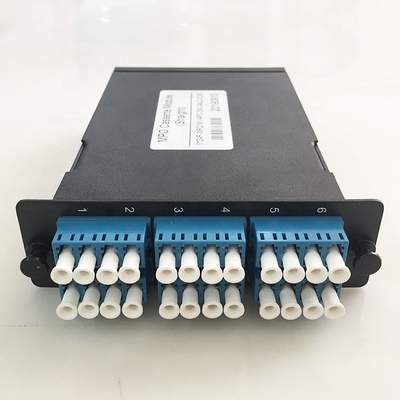

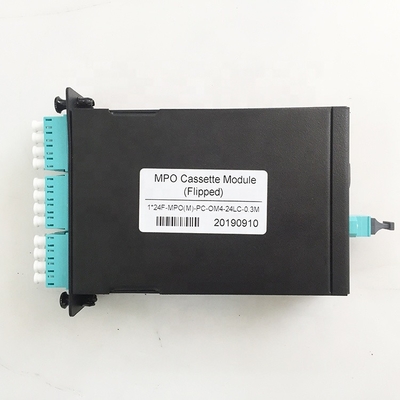

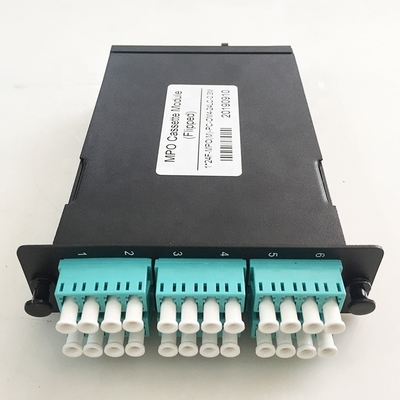

LC Quadra MPO MTP chassete
| Apply port: | SC Duplex / LC Quadruple / MPO Simplex | Capacity: | 12core,24core |
| Size: | 180 X 90 X 30 (mm) | Material: | Metal / ABS |
| Color: | Black | Application: | Network, Telecommunications |
| Fiber type: | Singlemode / Mutilmode | Aadpter color: | Beige / Blue / Green /Auqa / Purple |
| High Light: | 12core SC Duplex MPO MTP,24core LC Quadruple MPO MTP,12core Single Mode ABS MPO MTP |
||
12 Fiber 24F Fiber Optic MPO MTP Cassette Modules equipped with LC SC MTRJ Connector
Introduction:

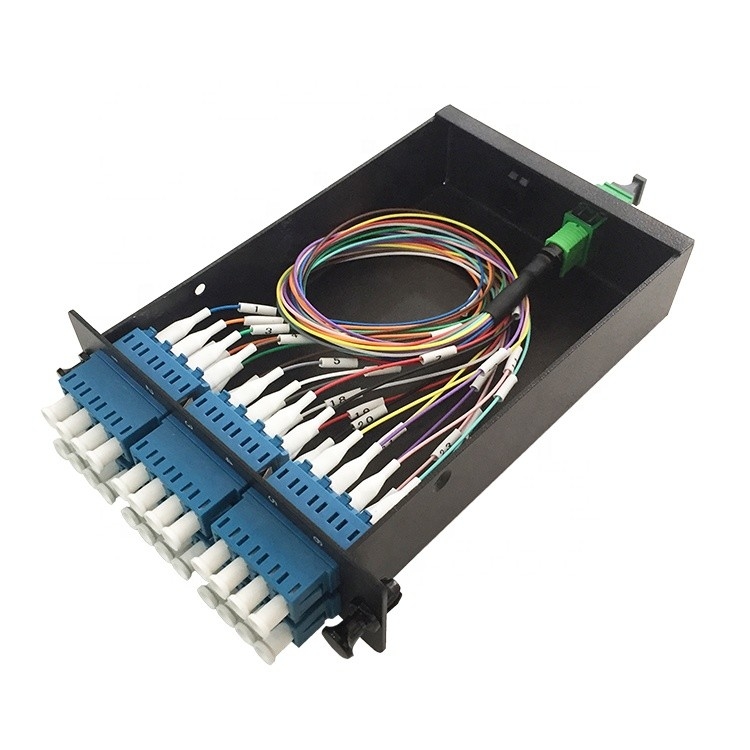

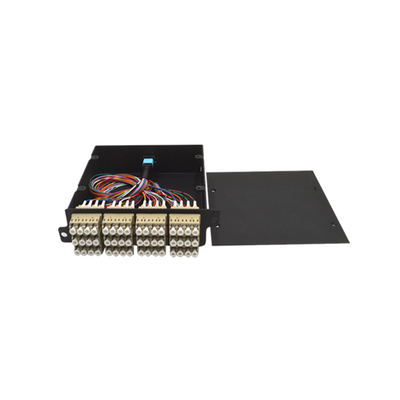

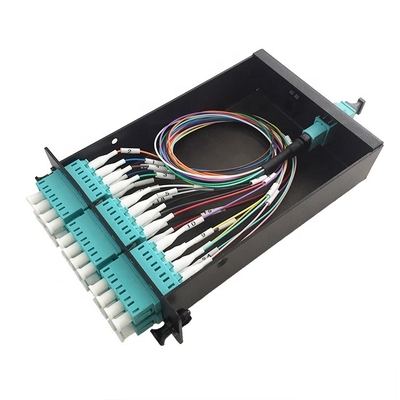

The MPO/MTP Cassette provide secure transition between MPO/MTP and LC or SC discrete connectors. They provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module. The Modules can be mounted in 1U or 4U 19' multislot chassis. They are available in Multi-mode and Single-mode cable.
Features:

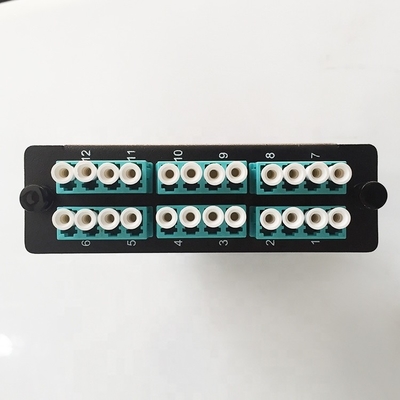

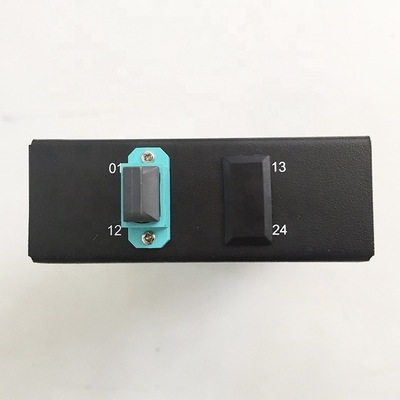

1. The front panel is equipped with LC ,MTRJ or SC adapter, rear panel assembles the MPO adapter
2. Adopts high quality engineering plastics and aluminum alloy materials, with electrostatic plastic-sprayed on the surface ,making it beautiful in outlook and convenient is use
3. MPO face plate can be upgraded easily
4. There are mark in the front of each port, and can be easily identified
5. Quick and easy installed ,flexible in configuration and easy to management
Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Connector Performance:
| Connector Mating | IL Average | IL Max | Return Loss | Connector Mating | IL Average | IL Max | Reture Loss |
| MTP/MPO(MM) | 0.20dB | 0.60dB | NA | MTP/MPO(SM) | 0.25dB | 0.75dB | >60dB |
| LC,SC(MM) | 0.15dB | 0.30dB | NA | LC,SC(SM) | 0.18dB | 0.30dB | >55/65dB*UPC/APC |
Technical Specification:
| Element | Characteristic |
| Fibre | OS1/OS2, OM1, OM2, OM3,OM4 |
| Adaptors | -MTP/MPO; -LC Duplex; LC Quadruple; SC Duplex |
| Connectors | -MTP/MPO connector; - LC connector; SC connector |
| Cassette Material | Colled rolled steel |
| Operating Temperature | -20~+60 ℃ |
| Storage Temperature | -40~+70 ℃ |
| Dimensions | 180 x 90 x 30mm |
2. Professional manufacturer, 100% tested;
3. Full compliance with ISO 9001:2015 quality management system and RoHS ;
4. Our company has experienced professiona R&D and Sales team
5. Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
2Good quanlity,cooperate for long time,reliable!
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
