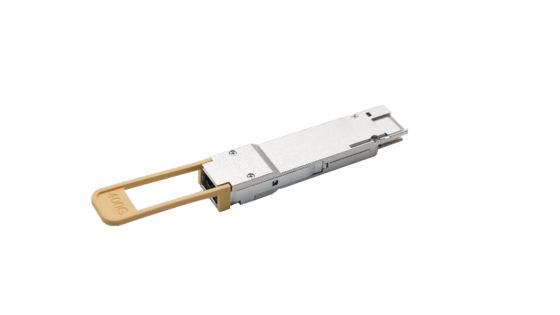

transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

Large Image : transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	CY COM
Certification:	ISO9001:2015, ISO14001:2015, ROSH
Model Number:	QSFP-DD 400G SR8

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	Plastic box and Carton box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	50k/Month

Contact Now

Detailed Product Description

Form Factor::	QSFP–DD	Transceiver::	SR8
Interface::	MPO	Media::	MMF
Reach/km::	0.1km	Power Consumption/W::	10
Temperature/℃::	0 To 70
Highlight:	QSFP-DD 400GE SR8 transceiver module , 400GE SR8 fiber optic transceiver , QSFP-DD transceiver with OM4 OM3 compatibility

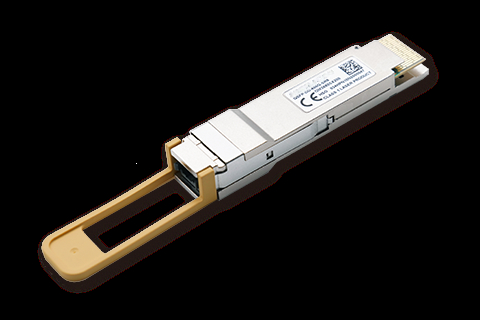

QSFP-DD 400GE SR8 Transceiver Module - 100m OM4 & 70m OM3

The OM3680SX200 is a parallel 400GE Quad Small Form Factor Pluggable Double Density (QSFP-DD) SR8 optical module designed for optical communication applications. The module uses a 4-level pulse amplitude modulation (PAM4) format and provides point-to-point 400 Gigabit Ethernet links over eight pairs of multimode fiber.

Function Descriptions

The optical module provides:

Reach of up to 100 m for OM4 (MMF)
Reach of up to 70 m for OM3 (MMF)

Compliant with QSFP-DD MSA standard, IEEE 802.3cm 400GBASE-SR8 standard, and IEEE 802.3bs 400GAUI-8 standard. Digital diagnostics functions are available via the I2C interface as specified by the QSFP-DD MSA.

Figure 1-1: Transceiver block diagram

Pin Descriptions

The QSFP-DD SR8 module edge connector consists of a single paddle card with 38 pads on the top and 38 pads on the bottom for a total of 76 pads. The pads are defined to accommodate insertion of a QSFP module into a QSFP-DD receptacle.
