ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC

China ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC supplier

Large Image :  ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: ST duplex connector

Payment & Shipping Terms:

Minimum Order Quantity: 20 Piece/Pieces
Packaging Details: 1 pcs/small bag, 50 small bag/big bag
Delivery Time: according to your target quantity
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 12000pcs/day
Contact Now
Detailed Product Description
Product Name: Fiber Optics Connector Feature: Low Insertion Loss And Return Loss
Type: PC,UPC,APC Insertion Loss: ≤ 0.2dB,≤ 0.3dB
High Light:

fiber optic fc connector

,

optical fibre pigtail

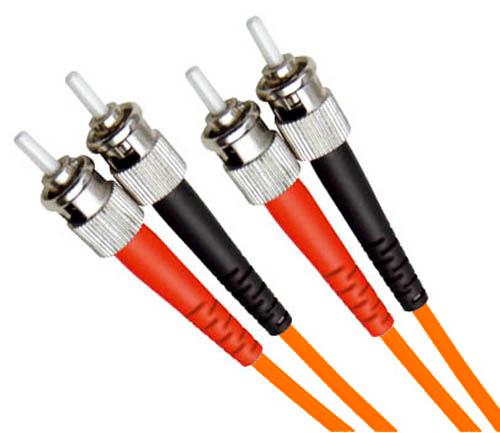

ST DX Duplex Fiber Optics Connector Assemblies PC And APC

     Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
     ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.



Feature:

  1. Low insertion loss and return loss
  2. Free-floating ceramic ferrule
  3. UL-rated plastic housing and boot
  4. Boots in a variety of colors
  5. High precision alignment

Availability:

  • -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
  • Housing kits without ferrule are available.
  • -PC and APC are available

Applications:

Telecommunication network;
Computer LAN;
Cable television network;
Connection of optical cable and light receiver.

Specification:


Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


Order information:

Fiber cores: 1, 4, 8, 12, 16... cores
Diameter:0.9, 2.0, 3.0mm
Length:1m, 2m, 3m to 120m
Fiber: SM/OM1/OM2/OM3/OM4
Material of jacket: PVC/LSZH/OFNR
Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000



ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APCISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APCISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC



ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC



ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC
