MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
| Connector Gender: | Female Male | Side A/B Fiber Polish：: | UPC APC Male |
| Cable Polarity：: | Type A Type B Type C | Cable Materials: | OFNR OFNP |
| Cable Length:: | 1M 3M 5M 10M 15M 30M | Cable Cores:: | 8F 12F 16F 24F |
| High Light: | optical communication devices,fiber optic equipments |
||
- MPO Connector with Optimal 0.35dB Low Insertion Loss
- Bend Insensitive Fiber with 7.5mm Minimum Bend Radius
- 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
- OFNP Fire Safety-Rated for Use in Plenum Air Spaces
- Designed for Linking 400G QSFP-DD and OSFP Transceivers
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D Standards
| Specification | Details |
|---|---|
| Connector A | MPO-16 Female (Non-Pinned) with Offset Key |
| Connector B | MPO-16 Female (Non-Pinned) with Offset Key |
| Polish Type | APC to APC |
| Glass Fiber | Bend Insensitive Fiber |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| Fiber Count | 16 Fibers |
| Polarity | Crossover |
| Cable Outside Diameter (OD) | 3.0mm |
| Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 times |
| Tensile Strength | 80/240N (Long/Short Term) |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥45dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) |
| Storage Temperature | -10 to 70°C (14 to 158℉) |
-
MThis products and company is very well,fast feedback!
-
8Reliable manufacturer,reassuring,experienced!
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber
The MPO Jumper Cable with Optimal 0.35dB Low IL, Designed for Linking 800G QSFP-DD Transceivers Model MTP-16 Jumper, F to F, APC, 16F, OS2, OFNP, 0.35dB, Crossover The MPO-16 jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end ...

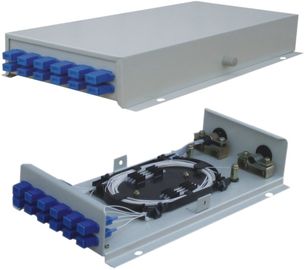

24 Port Fiber Optic Distribution Box
