FTTH Fiber Optical Cable LSZH Jacket For Indoor Horizontal & Vertical Cabling
| High Light: | fiber patch cables,splicing fiber optic cable |
||
FTTH Fiber Optical Cable LSZH Jacket For Indoor Horizontal & Vertical Cabling
Features:

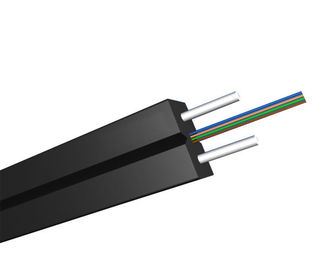

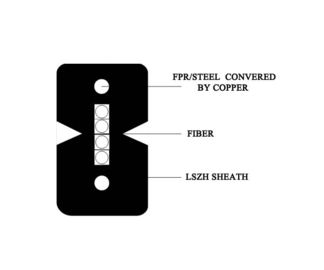

- The structure is 1-12 colored fibers combined with two FRP(or steel wires), which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.
- Simple and convenient structure, convenient for indoor cabling.
- Good desing for lateral crushing resistance.
- Fiber coun is 1-12 cores, can be other fiber count upon request
- White color for indoor use, can also be other color upon request.
Application:
1. As FTTH cable, for indoor horizontal and vertical cabling.
2. Indoor cabling under carpet and along corner
Specification:
| Fiber Count |
Out sheath Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 1 | 3.1x2.0 | 9 | 600 | 200 | 20D | 10D | 1000 | 300 | -20~60 |
| 2 | 3.1x2.0 | 9 | 600 | 200 | 20D | 10D | 1000 | 300 | -20~60 |
| 4 | 4.1x2.0 | 10 | 600 | 200 | 20D | 10D | 1000 | 300 | -20~60 |
Order Information:
1 Cable type:White color of Indoor, Black color of outdoor
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 1-12
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: LSZH
-
