Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket

China Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket supplier
Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket supplier Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket supplier

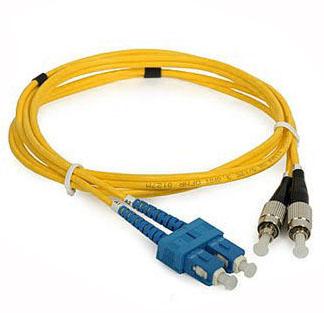

Large Image :  Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: FC-SC SM DX Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: USD3.0-4.5/PCS
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Color: Yellow Insertion Loss: <=0.2dB
Structure: Duplex

 Fiber optic cable manufacture FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket


►Application:
Gigabit Ethernet
Active device termination
Telecommunication networks
Video
Multimedia
Premise installations
Local area networks
FTTH and FTTX applications
CATV



Technical Parameter :

ParameterUnitFC, SC, LC/ Armoured fiber patch cordST, MUMT-RJ, MPOE2000
SMMMSMMMSMMMSM
PCUPCAPCPCPCUPCPCPCUPCPCPCAPC
Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75
Operating wavelengthnm1310, 15101310, 15101310, 15101310, 1510
ExchangeabilitydB≤0.2≤0.2≤0.2≤0.2
VibrationdB≤0.2≤0.2≤0.2≤0.2
Operating temperature°C-40~75-40~75-40~75-40~75
Storage temperature°C-45~85-45~85-45~85-45~85
Cable diametermmΦ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9φ3.0, φ2.0, φ0.9



►Material of patch cord:
Dust caps: LDPE, transparent (RoHS)
Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
Inner frame: PBT, white (RoHS)
Ferrule: zirconium oxide ceramic material, white (RoHS)
Ferrule’s handle: copper (C3602), nickelage (RoHS)
Mechanical spring: stainless steel (RoHS)
Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
Snap ring: aluminium alloy 6063 (RoHS)
Ring: copper alloy (HPD62), nickelage (RoHS)
Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

►Order information:

Type: SX/DX optional
Ferrule end face: APC/UPC/PC
Diameter: 0.9, 2.0, 3.0mm
Length:1m, 2m, 3m to 120m
Fiber: SM/OM1/OM2/OM3/OM4
Material of jacket: PVC/LSZH/OFNR



Fiber optic cable FC/UPC to SC/UPC singlemode 2.0mm LSZH out jacket
