Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter

Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter
Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter
video play

Large Image :  Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter

Product Details:
Place of Origin: China
Brand Name: CY
Certification: ISO9001:2008, SGS, ROSH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: cardboard
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union, PayPal, L/C
Detailed Product Description
Fiber Type: Bare Fiber / 900um Loose Tube Return Loss: >45dB
Channel Ripple: <0.3dB Directivity: >50dB
High Light:

optical communication devices

,

fiber optic equipments

1×2 Fiber Optic Splitter

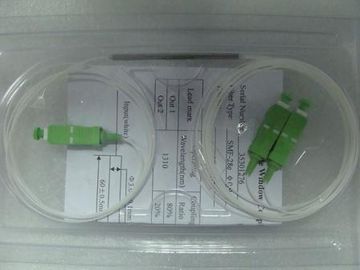

Steel tube package, 1310/1550nm, 50:50, SC/APC connector, 3.0mm cable

FBT SPLITTER:
1. FBT Fiber Optic Splitter
2. PC, UPC, APC polishing
3. FC, SC, ST LC AND MU adapter
4. Wavelength: 1310/1550

Description:
The products is mainly used in optical destribtuion network, in order to achieve cell-side of the multi-user access. The products are mainly applied a variety of chassis design, card access or bundled fixed. Total 1 input connector, a number of output connectors as the optical output, 2.0nm or 3.0nm cable protection, reliable, compact, plug-and-play.

Features:
1. Various coupling splitting ratios
2. Small size reduced physical space requirements
3. Cable length, diameter optional
4. PC, UPC and APC connector Polish types
5. Available with FC, SC, ST, LC and MU adapters
6. Wavelength: 1310/1490/1550nm

Techical Standard
Type 1:04 1:08
Insertion loss(d B) ≤7.4 ≤10.9
Homogeneith (d B) ≤1.2 ≤1.8
Wavelength nm 1310/1490/1550 1310/1490/1550
Directivity (d B) ≥50
Return (d B) ≥55
Fiber Type SMF-28e
Polarization Dependent Loss (d B) ≤0.3 ≤0.4
Temperature Dependent Loss (d B) ≤0.4 ≤0.6
Wavelength Dependent Loss (d B) ≤0.6 ≤0.9
Operation Temperature °C -40~+85
Storage Temperature °C -40~+85
Adapter FC/SC





Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter 0Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter 1Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter 2Return Loss>45dB 1310 / 1550nm 1×2 Various coupling splitting ratios Fiber Optic Splitter 3
