3port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System

3port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System
3port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System
video play

Large Image :  3port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System

Product Details:
Place of Origin: China
Brand Name: CY
Certification: ISO9001:2008, SGS, ROSH
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: Plastic Bag
Delivery Time: in 3-10 days
Payment Terms: T/T, Western union
Supply Ability: 20000pcs per month
Detailed Product Description
Fiber Type: Bare Fiber / 900um Loose Tube Return Loss: >45dB
Channel Ripple: <0.3dB Directivity: >50dB
High Light:

fiber optic splitter

,

fiber optic equipments

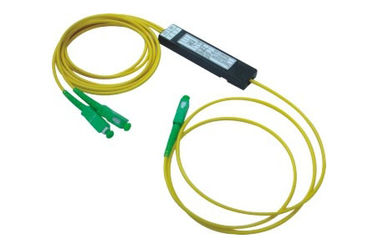

1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System



Optical Splitter/Coupler is an optical device that combines or splits power from optical fibers.
It divides light from a single fiber into two or more fiber channels.

Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available



Type Multimode Standard Fiber Couplers
Coupling Ratio(% ) 50/50
Grade P A
Excess Loss(Typ.) 0.8 1.0
Max. Insertion Loss(dB) 3.9 4.1
Uniformity(Max)(dB) 0.6 0.8
Directivity(dB) ≥40
Operating Wavelength(nm) 600~1600
Central Wavelength(nm) 850, 1310 or 850/1310
Operating Temperature(ºC) -40~+85
Fiber Type Corning Multimode 50/125, 62.5/125 Fiber
Fiber Pigtail Length(m) 1 or Customer on Request
Port Configuration 1X2 or 2X2
Package Dimension(mm) A, B, C, D, M



Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting



3port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System 03port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System 13port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System 23port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System 33port Return Loss >45dB 1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System 4
